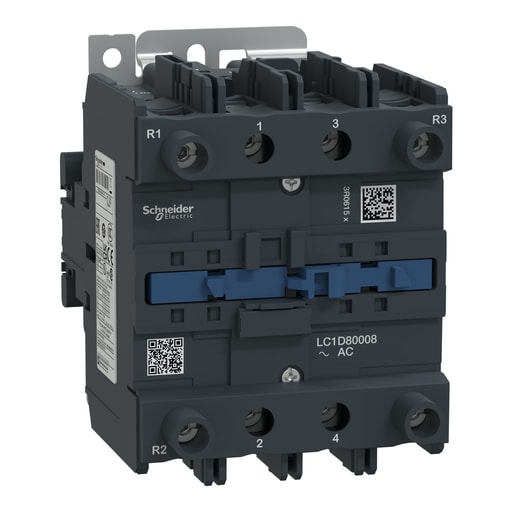

Square-D / Schneider - Square D LC1D80008F7 CONTACTOR 575VAC 80AMP IEC +OPTIONS
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110075130
Applications - Resistive load
Catalog Number - LC1D80008F7
Coil Voltage - 110 V AC 50/60 HZ,POWER CIRCUIT <= 300 V DC 25...400 HZ-POWER CIRCUIT <= 690 V AC
Country of Origin - Czechia
Packaging
1 ea
EAN
03389110075137
Part #
373176
Catalog #
LC1D80008F7
Commercial reference
LC1D80008F7
12-Digit UPC:
389110075130
Applications:
Resistive load
Catalog Number:
LC1D80008F7
Coil Voltage:
110 V AC 50/60 HZ,POWER CIRCUIT <= 300 V DC 25...400 HZ-POWER CIRCUIT <= 690 V AC
Country of Origin:
Czechia
Depths:
140 mm
ERP_productname:
SQD LC1D80008F7 IEC CONTACTOR, TESYS DECA, NONREVERSING, 125A RESISTIVE, 4 POLE, 2 NO AND 2 NC, 110VAC 50/60HZ COIL, OPEN STYLE
Family Brand Name:
Schneider Electric
Heights:
127 mm
Impedance:
0.8 MOhm - Ith 125 A 50 Hz For Power Circuit
Size:
127 MM,140 MM,96 MM
Sub Brand:
TESYS,TESYS D
Tc Connection:
CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 4-25 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 2 4-16 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 4-25 MMA.SOLID WITHOUT CABLE END
Type:
Contactor
Voltage:
300 Volt
Wattage:
12.5 Watt AC-1
Widths:
96 mm
SoneparProductId:
SKU_US_31837096
