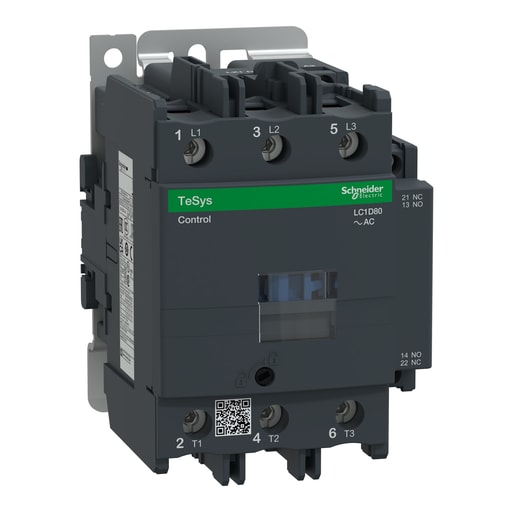

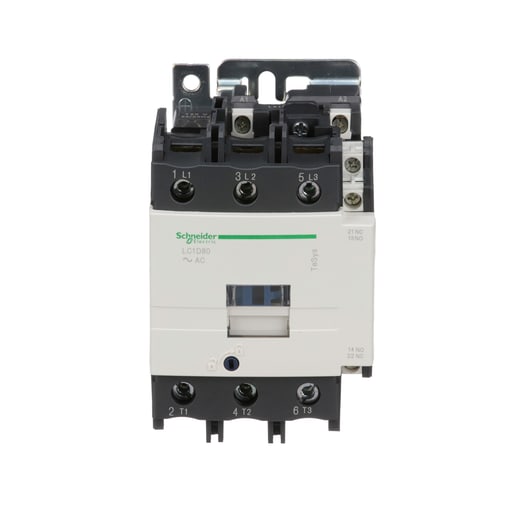

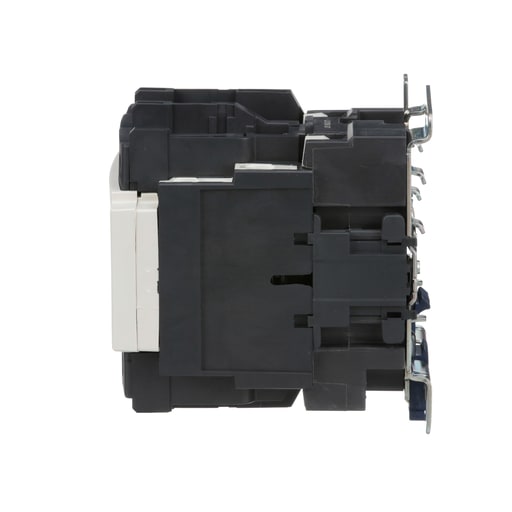

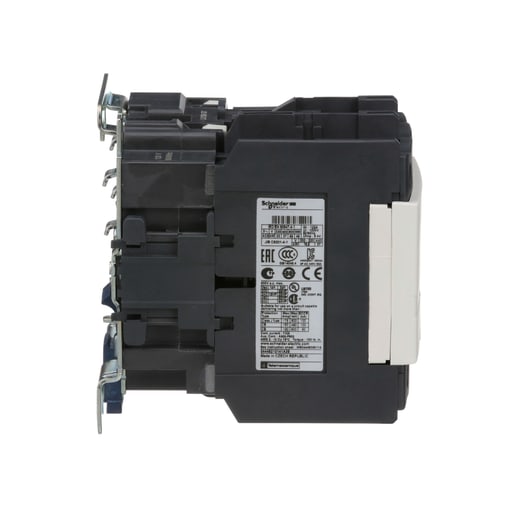

Square-D / Schneider - Square D LC1D80G7 600 VAC 80 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Essential specifications

12-Digit UPC - 389110440860
Applications - MOTOR CONTROL-RESISTIVE LOAD
Catalog Number - LC1D80G7
Coil Voltage - 120 V AC 50/60 HZ,POWER CIRCUIT <= 300 V DC 25...400 HZ-POWER CIRCUIT <= 690 V AC
Country of Origin - Czechia

Packaging

1 ea

EAN

03389110440867

Part #

144071

Catalog #

LC1D80G7

Commercial reference

LC1D80G7

12-Digit UPC:

389110440860

Applications:

MOTOR CONTROL-RESISTIVE LOAD

Catalog Number:

LC1D80G7

Coil Voltage:

120 V AC 50/60 HZ,POWER CIRCUIT <= 300 V DC 25...400 HZ-POWER CIRCUIT <= 690 V AC

Country of Origin:

Czechia

Depths:

130 mm

ERP_productname:

SQD LC1D80G7 80A 120V COIL CONTACTOR

Family Brand Name:

Schneider Electric

Heights:

127 mm

Impedance:

0.8 MOhm - Ith 125 A 50 Hz For Power Circuit

Size:

127 MM,130 MM,85 MM

Sub Brand:

TESYS D

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 4-25 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 2 4-16 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 4-25 MMA.SOLID WITHOUT CABLE END

Type:

CONTACTOR

Voltage:

300 Volt

Wattage:

5.1 Watt AC-3 - 12.5 Watt AC-1

Widths:

85 mm

SoneparProductId:

SKU_US_69894567

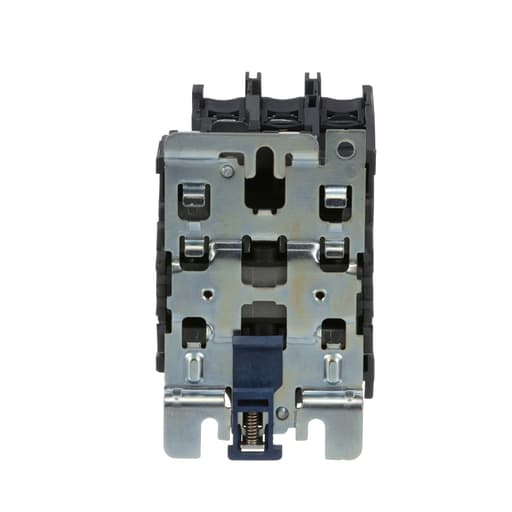

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 80A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Contactor is also rated for 7.5HP at 115VAC and 15HP at 240VAC single phase. When used with a 480VAC up to 150A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 175A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 5.12 inches deep. It weighs 3.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LADN22; LADN11; LADN20; LAD8N11; LADT2; LADN40; LADN31; LADN02; LADT0; LAD8N20; LADS2; LADR2; LADR0; LA4DA2U; LADN04; LADN13; LADR4; LADT4; LAD8N02; LA4DFB; LA4DE2U; LA4DA2G; LA4DT2U; LA4DWB; LA4DT0U; LA4DE2G; LA4DT4U - Cross Sell Products: LRD3361; LRD3363 - Spare Part Products: LX1D6G7
