Square-D / Schneider - Square D LC1DT25BD CONTACTOR 600VAC 25AMP IEC + OPTIONS

Essential specifications

12-Digit UPC - 389110247797
Applications - Resistive load
Catalog Number - LC1DT25BD
Coil Voltage - 24 V DC,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110247794

Part #

215576

Catalog #

LC1DT25BD

Commercial reference

LC1DT25BD

12-Digit UPC:

389110247797

Applications:

Resistive load

Catalog Number:

LC1DT25BD

Coil Voltage:

24 V DC,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC

Country of Origin:

Indonesia

Depths:

99 mm

ERP_productname:

SQD LC1DT25BD CONTACTOR 600VAC 25AMP IEC + OPTIONS

Family Brand Name:

Schneider Electric

Heights:

85 mm

Impedance:

2.5 MOhm - Ith 25 A 50 Hz For Power Circuit

Size:

45 MM,85 MM,99 MM

Sub Brand:

TeSys D;TeSys Deca

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END

Type:

Contactor

Voltage:

300 Volt

Wattage:

1.56 Watt AC-1

Widths:

45 mm

SoneparProductId:

SKU_US_29690249

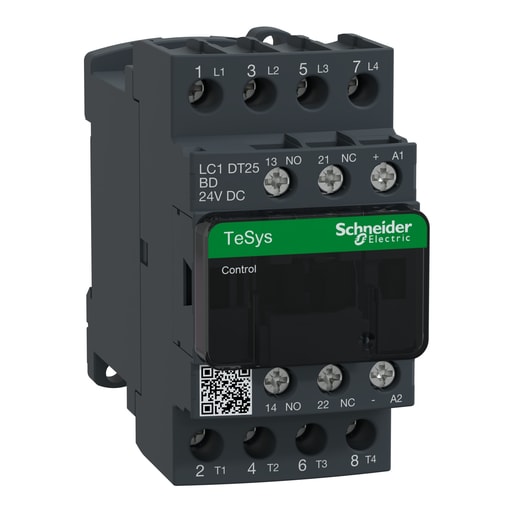

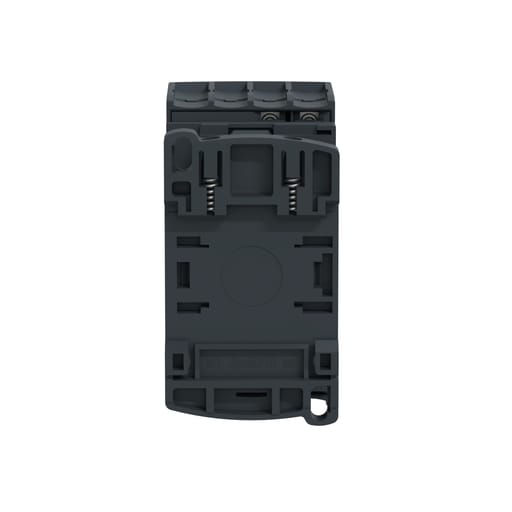

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 25A resistive load rating. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.80 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LADN22; LADN11; LADN20; LADT2; LADN40; LADN31; LADN02; LADT0; LADS2; LADR2; LADR0; LADN22S; LADN04; LADN13; LAD4TBDL; LAD6K10B; LAD9ET1S; LADR4; LAD4DDL; LADT4; LAD92560; LAD9ET1; LADT9R1; LADT9R1V; LAD9V2; LA4DB3B - Cross Sell Products: GV2P22; GV2ME22; GV2L22; GV2LE22; LRD22
