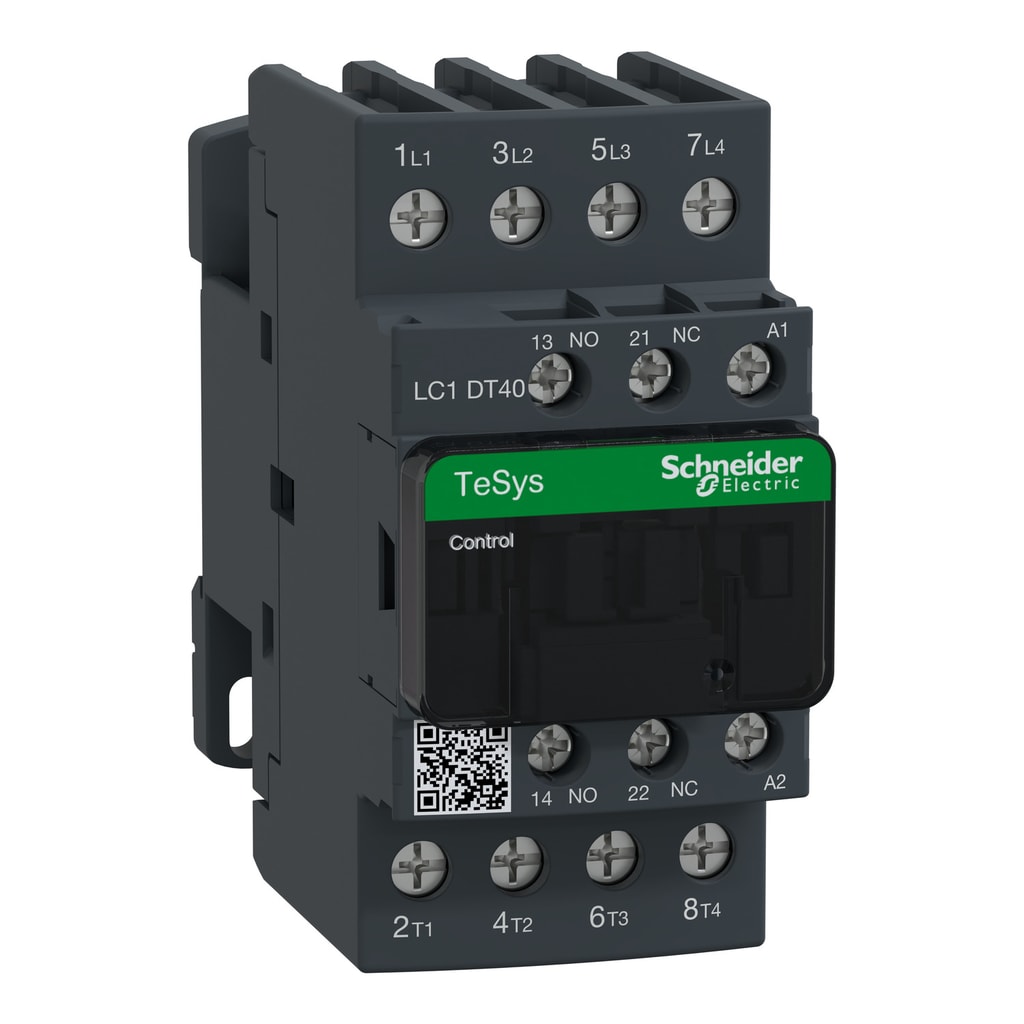

Square-D / Schneider - Square D LC1DT40P7 IEC Contactor, TeSys Deca, Nonreversing, 40A Resistive, 4Pole, 4 NO, 230VAC 50/60Hz Coil, Open Style

Essential specifications

12-Digit UPC - 389110244772
Applications - Resistive load
Catalog Number - LC1DT40P7
Coil Voltage - 230 V AC 50/60 HZ,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110244779

Part #

394621

Catalog #

LC1DT40P7

Commercial reference

LC1DT40P7

12-Digit UPC:

389110244772

Applications:

Resistive load

Catalog Number:

LC1DT40P7

Coil Voltage:

230 V AC 50/60 HZ,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC

Country of Origin:

Indonesia

Depths:

99 mm

ERP_productname:

SQD LC1DT40P7 IEC CONTACTOR, TESYS DECA, NONREVERSING, 40A RESISTIVE, 4 POLE, 4 NO, 230VAC 50/60HZ COIL, OPEN STYLE

Family Brand Name:

Schneider Electric

Heights:

91 mm

Impedance:

2 MOhm - Ith 40 A 50 Hz For Power Circuit

Size:

45 MM,91 MM,99 MM

Sub Brand:

LC1D;TeSys D;TeSys Deca

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 2.5-10 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 2.5-10 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 2.5-10 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 2 2.5-10 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 1 2.5-16 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 2.5-16 MMA.SOLID WITHOUT CABLE END

Type:

Contactor

Wattage:

3.2 Watt AC-1

Widths:

45 mm

SoneparProductId:

SKU_US_220109157

TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 40A/440V AC-1. They can be used to create motor starters for almost any type of application. It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60.C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Power contacts have a 40A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LADN22; LAD4RCU; LADN11; LADN20; LAD8N11; LADT2; LADN40; LADN31; LADN02; LADT0; LAD8N20; LADS2; LADR2; LADR0; LADN04; LADN13; LAD4VU; LAD9ET1S; LADR4; LADT4; LAD8N02 - Cross Sell Products: LAD90; LADT9R1V - Spare Part Products: LXD1P7
