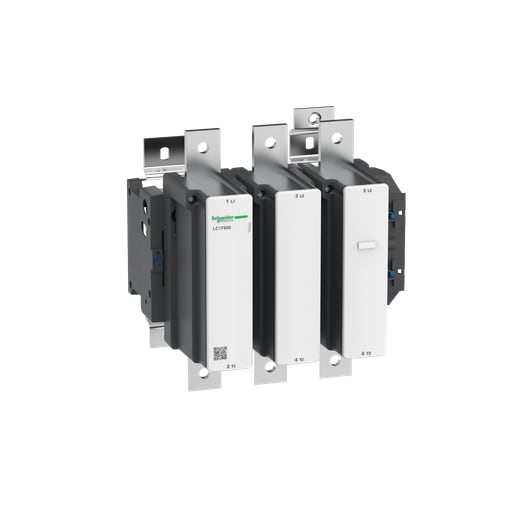

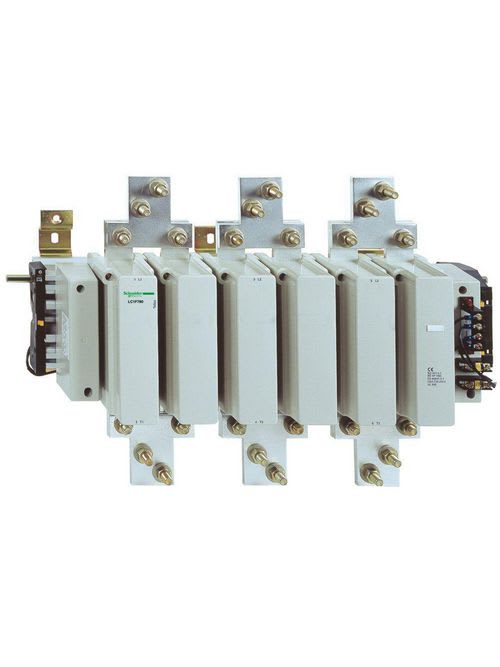

Square-D / Schneider - Square D LC1F800FW 575 VAC 800 Amp 3-Pole 1NO Panel Mount Full Voltage Non-Reversing IEC Contactor
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901790112
Applications - RESISTIVE LOAD-MOTOR CONTROL
Catalog Number - LC1F800FW
Coil Voltage - 110 V DC STANDARD-125 V DC STANDARD-110 V AC STANDARD-115 V AC STANDARD-120 V AC STANDARD,110...125 V DC-100...120 V AC 40...400 HZ,<= 1000 V AC 50/60 HZ- <= 460 V DC
Country of Origin - Czech Republic
Packaging
1 ea
EAN
03389110790597
Part #
162823
Catalog #
LC1F800FW
Commercial reference
LC1F800FW
12-Digit UPC:
785901790112
Applications:
RESISTIVE LOAD-MOTOR CONTROL
Catalog Number:
LC1F800FW
Coil Voltage:
110 V DC STANDARD-125 V DC STANDARD-110 V AC STANDARD-115 V AC STANDARD-120 V AC STANDARD,110...125 V DC-100...120 V AC 40...400 HZ,<= 1000 V AC 50/60 HZ- <= 460 V DC
Country of Origin:
Czech Republic
Depths:
255 mm
ERP_productname:
SQD LC1F800FW CONTACTOR 575VAC 800AMP IEC +OPTIONS
Family Brand Name:
Schneider Electric
Heights:
304 mm
Impedance:
0.12 MOhm - Ith 1000 A 50 Hz
Size:
255 MM,304 MM,309 MM
Sub Brand:
TESYS F
Tc Connection:
CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT BAR 2 60 X 5 MM-POWER CIRCUIT BOLTED CONNECTION
Type:
Contactor
Voltage:
1000 Volt
Wattage:
120 Watt AC-1 - 77 Watt AC-3
Widths:
309 mm
SoneparProductId:
SKU_US_26545772
