Square-D / Schneider - Square D LC1K0910B7 600 VAC 9 Amp IEC Contactor Plus Options

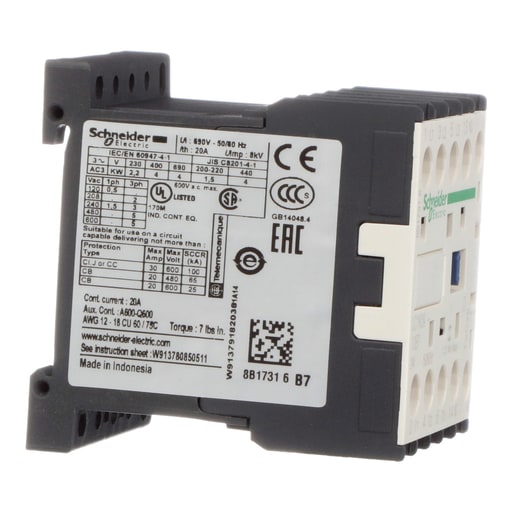

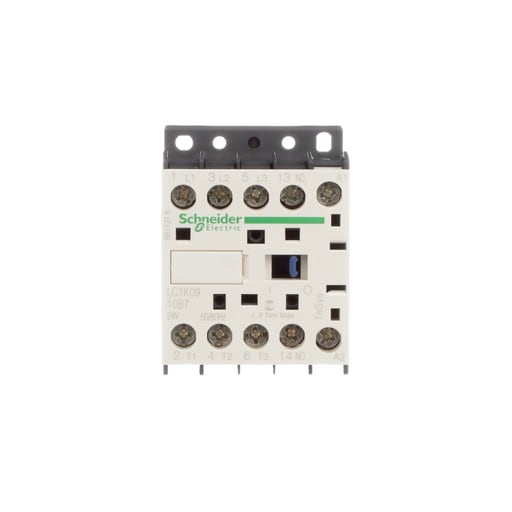

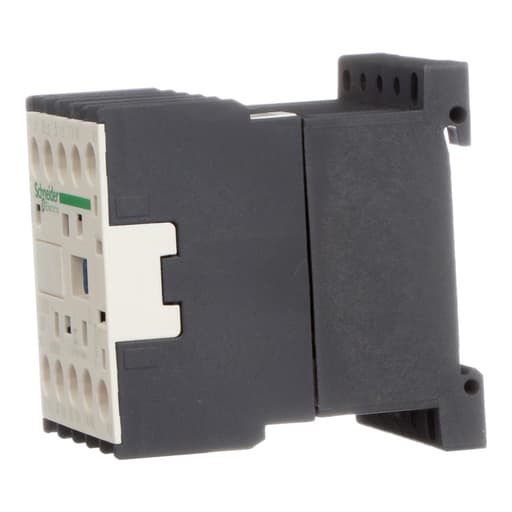

LC1K0910B7 is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications. Rated 9A AC-3 4kW@400V, it includes a 24V 50/60Hz AC coil and 1NO auxiliary contact. LC1K0910B7 is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 4kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it includes a 24V 50/60Hz AC coil and 1NO built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Provides a control circuit compatible with 50Hz and 60Hz supplies and 1NO built-in auxiliary contact. Optimized for simple power applications. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA1KN22; LA1KN11; LA4KE1B; LA1KN40; LA1KN31; LA1KN20; LA1KN04; LA1KN02; LA1KN13; LA9D90; LA1KN22M; LA1KN11M; LA2KT2E; LA2KT2U - Cross Sell Products: GV2ME14; LR2K0314; LR2K0316; GV2LE14
