Square-D / Schneider - Square D LC2D09E7 REVERSING CONTACTOR 575VAC 9A IEC

Essential specifications

12-Digit UPC - 785901640295
Applications - RESISTIVE LOAD-MOTOR CONTROL
Catalog Number - LC2D09E7
Coil Voltage - 48 V AC 50/60 HZ,48 V AC STANDARD,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110383263

Part #

208487

Catalog #

LC2D09E7

Commercial reference

LC2D09E7

12-Digit UPC:

785901640295

Applications:

RESISTIVE LOAD-MOTOR CONTROL

Catalog Number:

LC2D09E7

Coil Voltage:

48 V AC 50/60 HZ,48 V AC STANDARD,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC

Country of Origin:

Indonesia

Depths:

86 mm

ERP_productname:

SQD LC2D09E7 REVERSING CONTACTOR 575VAC 9A IEC

Family Brand Name:

Schneider Electric

Heights:

77 mm

Impedance:

2.5 MOhm - Ith 25 A 50 Hz For Power Circuit

Size:

77 MM,86 MM,90 MM

Sub Brand:

TESYS D

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END

Type:

Reversing contactor

Voltage:

300 Volt

Wattage:

0.2 Watt AC-3 - 1.56 Watt AC-1

Widths:

90 mm

SoneparProductId:

SKU_US_28956022

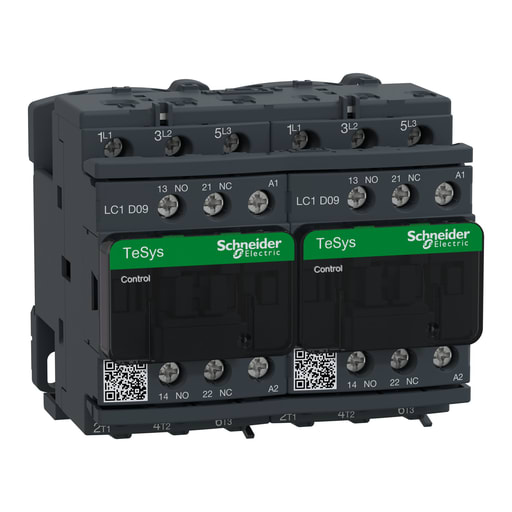

LC2D09E7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 9A AC-3 4kW@400V, it includes a 48V 50/60Hz AC coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D09E7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 4kW@400V. It includes a 48V 50/60Hz AC coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 48V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 9A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LADN22; LAD4RCG; LADN11; LAD8N11; LADT2; LXD1E7; LAD6K10E; LAD9ET1S - Cross Sell Products: GV2ME14; LRD14; GV2LE14 - Spare Part Products: LXD1E7
