Square-D / Schneider - Square D LC2D115B7 REVERSING CONTACTOR 575VAC 115A IEC

Essential specifications

12-Digit UPC - 389110530462
Applications - RESISTIVE LOAD-MOTOR CONTROL
Catalog Number - LC2D115B7
Coil Voltage - 24 V AC 50/60 HZ,24 V AC STANDARD,POWER CIRCUIT <= 1000 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Country of Origin - Czechia

Packaging

1 ea

EAN

03389110530469

Part #

227826

Catalog #

LC2D115B7

Commercial reference

LC2D115B7

12-Digit UPC:

389110530462

Applications:

RESISTIVE LOAD-MOTOR CONTROL

Catalog Number:

LC2D115B7

Coil Voltage:

24 V AC 50/60 HZ,24 V AC STANDARD,POWER CIRCUIT <= 1000 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC

Country of Origin:

Czechia

Depths:

148 mm

ERP_productname:

SQD LC2D115B7 REVERSING CONTACTOR 575VAC 115A IEC

Family Brand Name:

Schneider Electric

Heights:

158 mm

Impedance:

0.6 MOhm - Ith 200 A 50 Hz For Power Circuit

Size:

148 MM,158 MM,266 MM

Sub Brand:

TESYS D

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-2.5 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-2.5 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 10-120 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 10-50 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 10-120 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 2 10-50 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 1 10-120 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 10-50 MMA.SOLID WITHOUT CABLE END

Type:

Reversing contactor

Voltage:

1000 Volt

Wattage:

24 Watt AC-1 - 7.9 Watt AC-3

Widths:

266 mm

SoneparProductId:

SKU_US_75282729

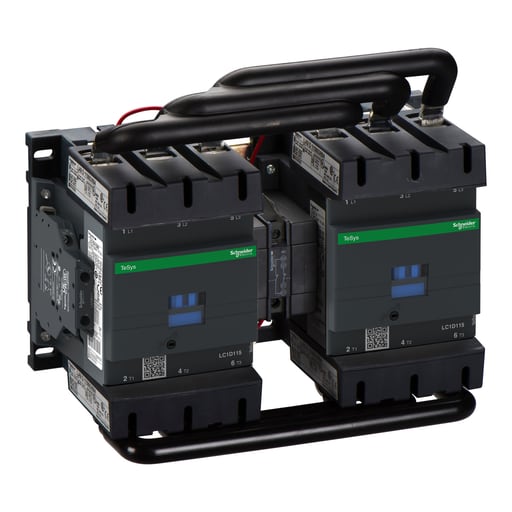

LC2D115B7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 115A AC-3 55kW@400V, it includes a 24V 50/60Hz AC coil, 2NO+2NC aux contacts, mechanical and electrical interlock. LC2D115B7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 55kW@400V. It includes a 24V 50/60Hz AC coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical and electrical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 266mm wide, for DIN-rail and panel mounting. Assembled with mechanical and electrical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 24V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 0.9 million cycles at 115A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: LRD4365 - Related Products: LA9D11502; LA9D11569; LC1D115B7 - Spare Part Products: LX1D8B7
