Square-D / Schneider - Square D LC2D50AF7 TeSys Deca D 3P EVERLINK AC REVERSING CONNECTOR

Essential specifications

12-Digit UPC - 389119409561
Applications - RESISTIVE LOAD-MOTOR CONTROL
Catalog Number - LC2D50AF7
Coil Voltage - 110 V AC 50/60 HZ,110 V AC STANDARD,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Country of Origin - France

Packaging

1 ea

EAN

03389119409568

Part #

267594

Catalog #

LC2D50AF7

Commercial reference

LC2D50AF7

12-Digit UPC:

389119409561

Applications:

RESISTIVE LOAD-MOTOR CONTROL

Catalog Number:

LC2D50AF7

Coil Voltage:

110 V AC 50/60 HZ,110 V AC STANDARD,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC

Country of Origin:

France

Depths:

120 mm

ERP_productname:

SQD LC2D50AF7 TESYS DECA REVERSING CONTACTOR - 3P(3 NO) - AC-3 - <= 440 V 50 A - 110 V AC COIL

Family Brand Name:

Schneider Electric

Heights:

122 mm

Impedance:

1.5 MOhm - Ith 80 A 50 Hz For Power Circuit

Size:

119 MM,120 MM,122 MM

Sub Brand:

TESYS D

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 1 1-35 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 1 1-35 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 1 1-35 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA.SOLID WITHOUT CABLE END

Type:

Reversing contactor

Voltage:

300 Volt

Wattage:

3.7 Watt AC-3 - 9.6 Watt AC-1

Widths:

119 mm

SoneparProductId:

SKU_US_31728913

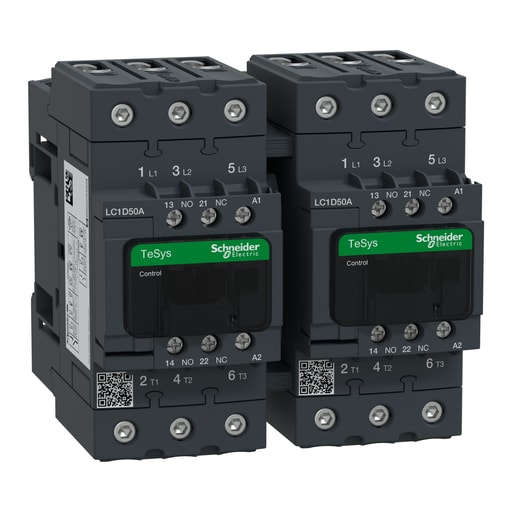

LC2D50AF7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 50A AC-3 22kW@400V, it includes a 110V 50/60Hz AC coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D50AF7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 22kW@400V. It includes a 110V 50/60Hz AC coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 119mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 110V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 50A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LADN22; LAD4RC3U; LADN11; LAD8N11; LADT2; LXD3F7; LAD6K10F; LAD9ET1S - Cross Sell Products: GV3P50; LRD350; GV3L50 - Spare Part Products: LXD3F7
