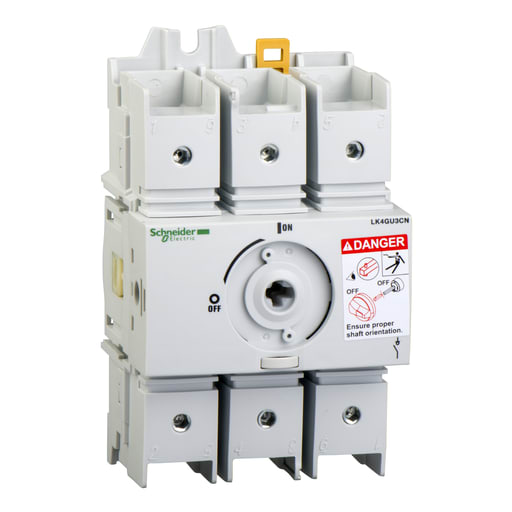

Square-D / Schneider - Square D LK4GU3CN 60 Amp 600 Volt 3-Pole Non-Fusible Disconnect Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901333470
Actuator - Rotary handle
Amperage - 63 A400 V AC AC-22A IEC-63 A400 V AC AC-23A IEC-63 A690 V AC AC-22A IEC-63 A690 V AC AC-23A IEC-60 Amp CSA-60 Amp UL
Applications - 20 HP 240 V 56 A AC-40 HP 480 V 53 A AC-50 HP 600 V 52 A AC
Catalog Number - LK4GU3CN
Packaging
1 ea
EAN
03606480510427
Part #
149514
Catalog #
LK4GU3CN
Commercial reference
LK4GU3CN
12-Digit UPC:
785901333470
Actuator:
Rotary handle
Amperage:
63 A400 V AC AC-22A IEC-63 A400 V AC AC-23A IEC-63 A690 V AC AC-22A IEC-63 A690 V AC AC-23A IEC-60 Amp CSA-60 Amp UL
Applications:
20 HP 240 V 56 A AC-40 HP 480 V 53 A AC-50 HP 600 V 52 A AC
Catalog Number:
LK4GU3CN
Country of Origin:
China
Depths:
64 mm
ERP_productname:
SQD LK4GU3CN DISCONNECT SWITCH NO FUSE 600V 60A 3P
Family Brand Name:
Schneider Electric
Heights:
125 mm
Number of Poles:
3 Pole
Size:
2.52 in
Sub Brand:
TESYS LK
Tc Connection:
LUGS-RING TERMINALS 1 4-4 MMA.
Type:
Non-fusible disconnect switch;Disconnect Switch
Voltage:
600 Volt
Wattage:
30 kW 400 Volt-40 kW 500 Volt-55 kW 690 Volt
Widths:
79.5 mm
SoneparProductId:
SKU_US_25601777
