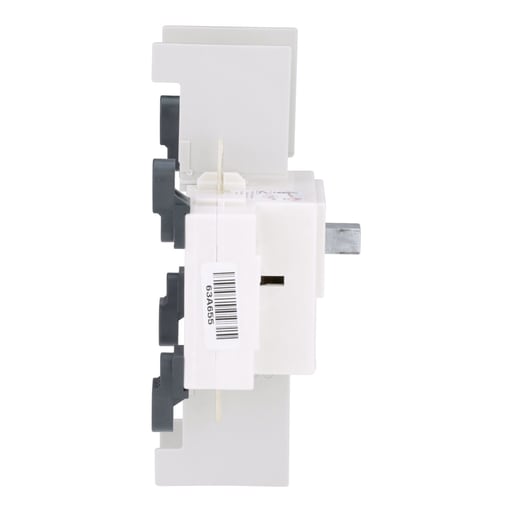

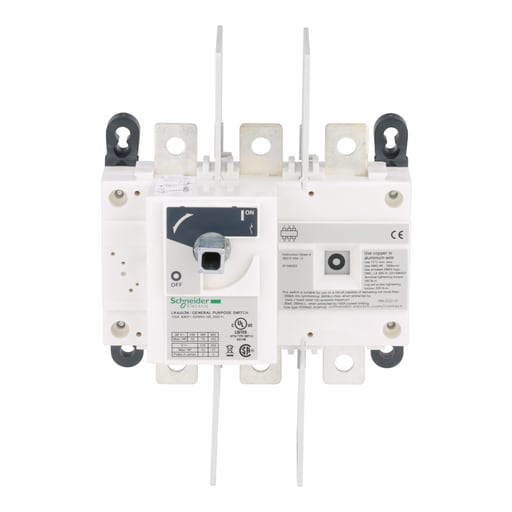

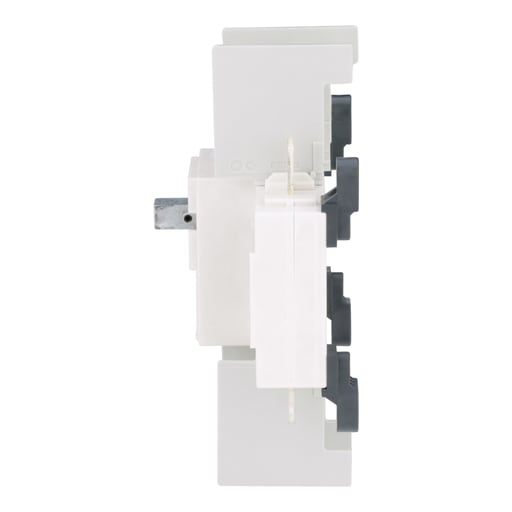

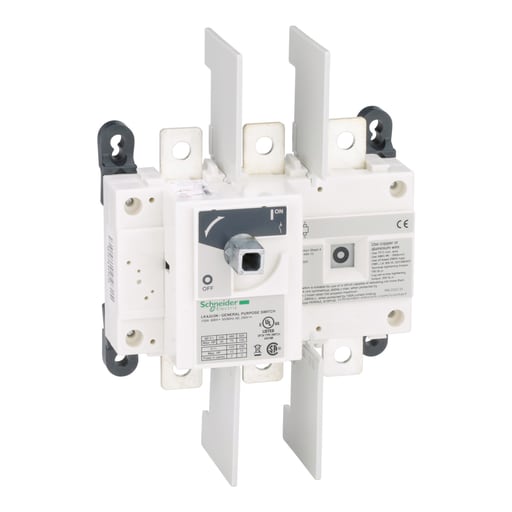

Square-D / Schneider - Square D LK4JU3N 100 Amp 600 Volt 3-Pole Non-Fusible Disconnect Switch

Essential specifications

12-Digit UPC - 606480510444
Actuator - Rotary handle
Amperage - 100 A400 V AC AC-22A IEC-100 A400 V AC AC-23A IEC-100 A690 V AC AC-22A IEC-100 A690 V AC AC-23A IEC-100 Amp CSA-100 Amp UL
Applications - 30 HP 240 V 53 A AC-75 HP 480 V 64 A AC-100 HP 600 V 51 A AC-10 HP 125 V 77 A DC-15 HP 250 V 54 A DC
Catalog Number - LK4JU3N

Packaging

1 ea

EAN

03606480510441

Part #

226521

Catalog #

LK4JU3N

Commercial reference

LK4JU3N

12-Digit UPC:

606480510444

Actuator:

Rotary handle

Amperage:

100 A400 V AC AC-22A IEC-100 A400 V AC AC-23A IEC-100 A690 V AC AC-22A IEC-100 A690 V AC AC-23A IEC-100 Amp CSA-100 Amp UL

Applications:

30 HP 240 V 53 A AC-75 HP 480 V 64 A AC-100 HP 600 V 51 A AC-10 HP 125 V 77 A DC-15 HP 250 V 54 A DC

Catalog Number:

LK4JU3N

Country of Origin:

France

Depths:

95 mm

ERP_productname:

SQD LK4JU3N DISCONNECT SWITCH NON-FUSIBLE 600V 100A 3P

Family Brand Name:

Schneider Electric

Heights:

160 mm

Number of Poles:

3 Pole

Size:

3.74 in

Sub Brand:

TeSys LK

Tc Connection:

LUGS-RING TERMINALS 1 4-4 MMA.

Type:

Non-fusible disconnect switch;Disconnect Switch

Voltage:

600 Volt

Wattage:

51 kW 400 Volt-63 kW 500 Volt-90 kW 690 Volt

Widths:

180 mm

SoneparProductId:

SKU_US_25492633

TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 100 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 30 HP rating at 240 VAC, a 75 HP rating at 480 VAC, a 100 HP rating at 600 VAC, a 10 HP rating at 125 VDC and a 15 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle. This 100A disconnect switch has a 200kA short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept one 6 AWG to 300 kcmil copper or aluminum wire. The disconnect switch is 6.30 inches tall, 7.09 inches wide and 3.72 inches deep. TeSys LK his motor circuit protector is UL Listed and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: GS2AH130; GS2AH140; GS2AH430; GS2AH440; GS2AE2; GS2AE21; GS2AEH12
