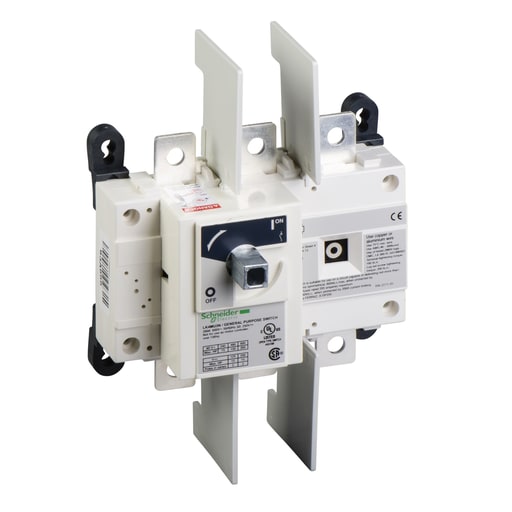

Square-D / Schneider - Square D LK4MU3N 600 Volt Non-Fusible Disconnect Switch

Essential specifications

12-Digit UPC - 606480510451
Actuator - Rotary handle
Amperage - 200 A400 V AC AC-22A IEC-200 A400 V AC AC-23A IEC-200 A690 V AC AC-22A IEC-200 A690 V AC AC-23A IEC-200 Amp CSA-200 Amp UL
Applications - 75 HP 240 V 92 A AC-150 HP 480 V 187 A AC-200 HP 600 V 192 A AC-15 HP 125 V 112 A DC-15 HP 250 V 56 A DC
Catalog Number - LK4MU3N

Packaging

1 ea

EAN

03606480510458

Part #

111326

Catalog #

LK4MU3N

Commercial reference

LK4MU3N

12-Digit UPC:

606480510451

Actuator:

Rotary handle

Amperage:

200 A400 V AC AC-22A IEC-200 A400 V AC AC-23A IEC-200 A690 V AC AC-22A IEC-200 A690 V AC AC-23A IEC-200 Amp CSA-200 Amp UL

Applications:

75 HP 240 V 92 A AC-150 HP 480 V 187 A AC-200 HP 600 V 192 A AC-15 HP 125 V 112 A DC-15 HP 250 V 56 A DC

Catalog Number:

LK4MU3N

Country of Origin:

France

Depths:

95 mm

ERP_productname:

SQD LK4MU3N DISCONNECT SWITCH NO FUSE 600V 200A 3P

Family Brand Name:

Schneider Electric

Heights:

160 mm

Number of Poles:

3 Pole

Size:

3.74 in

Sub Brand:

TeSys LK

Tc Connection:

LUGS-RING TERMINALS 1 16-16 MMA.

Type:

Non-fusible disconnect switch;Disconnect Switch

Voltage:

600 Volt

Wattage:

100 kW 400 Volt-140 kW 500 Volt-185 kW 690 Volt

Widths:

180 mm

SoneparProductId:

SKU_US_25493534

TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 200 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 75 HP rating at 240 VAC, a 150 HP rating at 480 VAC, a 200 HP rating at 600 VAC, a 15 HP rating at 125 VDC and a 15 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle. This 200A disconnect switch has a 200kA short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept one 6 AWG to 300 kcmil copper or aluminum wire. The disconnect switch is 6.30 inches tall, 7.09 inches wide and 3.72 inches deep. TeSys LK his motor circuit protector is UL Listed and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: GS2AH130; GS2AH140; GS2AH430; GS2AH440; GS2AE2; GS2AE21; GS2AEH12
