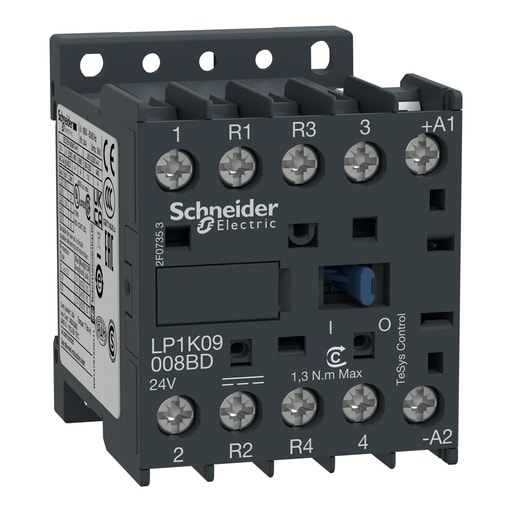

Square-D / Schneider - Square D LP1K09008BD 600 VAC 9 Amp 4-Pole 2NO 2NC Screw Clamp Terminal Non-Reversing IEC Contactor

Essential specifications

12-Digit UPC - 389110495839
Applications - RESISTIVE LOAD
Catalog Number - LP1K09008BD
Coil Voltage - POWER CIRCUIT 690 V AC 50/60 HZ
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110495836

Part #

103928

Catalog #

LP1K09008BD

Commercial reference

LP1K09008BD

12-Digit UPC:

389110495839

Applications:

RESISTIVE LOAD

Catalog Number:

LP1K09008BD

Coil Voltage:

POWER CIRCUIT 690 V AC 50/60 HZ

Country of Origin:

Indonesia

Depths:

57 mm

ERP_productname:

SQD LP1K09008BD CONTACTOR 600VAC 9AMP IEC

Family Brand Name:

Schneider Electric

Heights:

58 mm

Impedance:

3 MOhm - Ith 20 A 50 Hz For Power Circuit

Size:

45 MM,57 MM,58 MM

Sub Brand:

TESYS K

Tc Connection:

SCREW CLAMP TERMINALS 1 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-2.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 2 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMA.FLEXIBLE WITH CABLE END

Type:

CONTACTOR

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_26342872

TeSys K contactor, 4 poles (2NO+2NC), for non-inductive load control applications up to 20A/690V AC-1. It provides a 24V DC coil, without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50.C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA1KN22; LA1KN11; LA4KE1B; LA4KC1B; LA1KN40; LA1KN31; LA1KN20; LA1KN04; LA1KN02; LA1KN13; LA9D90; LA2KT2E; LA4KC2B - Cross Sell Products: LA9D90
