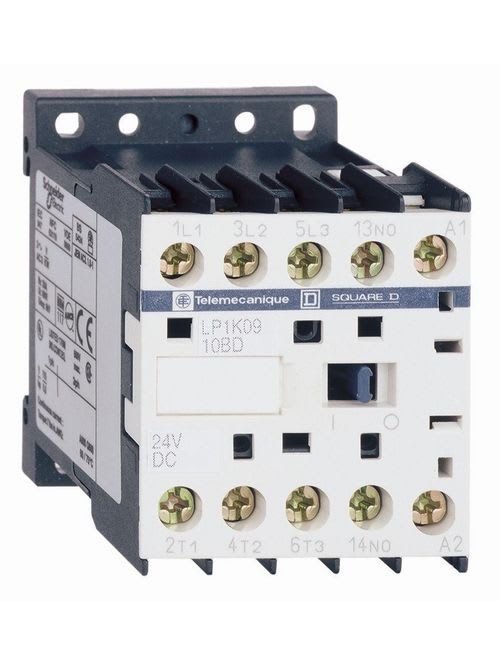

Square-D / Schneider - Square D LP1K0910BD3 575 VAC 9 Amp 3-Pole 1NO Screw Clamp Terminal Non-Reversing IEC Contactor

Essential specifications

12-Digit UPC - 389110428516
Applications - RESISTIVE LOAD-MOTOR CONTROL
Catalog Number - LP1K0910BD3
Coil Voltage - POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ
Country of Origin - France

Packaging

1 ea

EAN

03389110428513

Part #

481661

Catalog #

LP1K0910BD3

Commercial reference

LP1K0910BD3

12-Digit UPC:

389110428516

Applications:

RESISTIVE LOAD-MOTOR CONTROL

Catalog Number:

LP1K0910BD3

Coil Voltage:

POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ

Country of Origin:

France

Depths:

57 mm

ERP_productname:

SQD LP1K0910BD3 CONTACTOR, TESYS K, 3P, AC-3, LT OR EQ TO 440V, 9A, 1 NO AUX, 24VDC COIL

Family Brand Name:

Schneider Electric

Heights:

58 mm

Impedance:

3 MOhm - Ith 20 A 50 Hz For Power Circuit

Size:

45 MM,57 MM,58 MM

Sub Brand:

TESYS K

Tc Connection:

SCREW CLAMP TERMINALS 1 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-2.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 2 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMA.FLEXIBLE WITH CABLE END

Type:

CONTACTOR

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_26924031

LP1K0910BD3 from Schneider Electric is a 3-pole TeSys K contactor for motor applications up to 4kW@400V. It provides a 24V DC coil with surge suppressor, 1NO built-in auxiliary contact, connection by screw clamp terminals. Very compact, DIN-rail mounting and screw fixing, it procures reliability and durability to standard applications. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC). Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA1KN22; LA1KN11; LA1KN40; LA1KN31; LA1KN20; LA1KN04; LA1KN02; LA1KN13; LA9D90; LA1KN22M; LA1KN11M; LA2KT2E; LA2KT2U - Cross Sell Products: GV2ME14; LR2K0314; LR2K0316; GV2LE14
