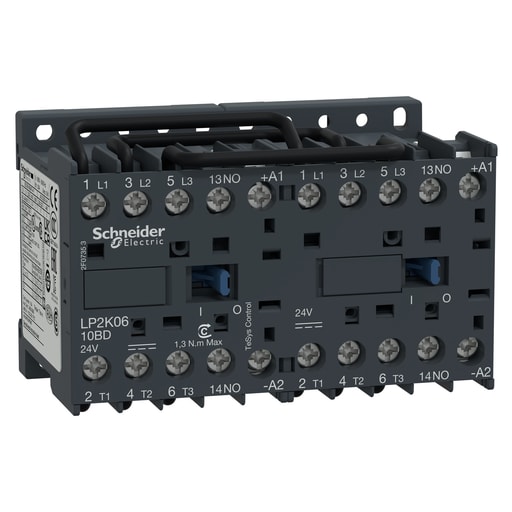

Square-D / Schneider - Square D LP2K0610BD 575 VAC 6 Amp 3-Pole 1NO Screw Clamp Terminal Reversing IEC Contactor

Essential specifications

12-Digit UPC - 785901913740
Applications - CONTROL,MOTOR CONTROL
Catalog Number - LP2K0610BD
Coil Voltage - 24 V DC,24 V DC STANDARD,POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ
Country of Origin - France

Packaging

1 ea

EAN

03389110496949

Part #

124462

Catalog #

LP2K0610BD

Commercial reference

LP2K0610BD

12-Digit UPC:

785901913740

Applications:

CONTROL,MOTOR CONTROL

Catalog Number:

LP2K0610BD

Coil Voltage:

24 V DC,24 V DC STANDARD,POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ

Country of Origin:

France

Depths:

57 mm

ERP_productname:

SQD LP2K0610BD REVERSING CONTACTORS 575VAC 6A IEC

Family Brand Name:

Schneider Electric

Heights:

58 mm

Impedance:

3 MOhm - Ith 20 A 50 Hz For Power Circuit

Size:

57 MM,58 MM,90 MM

Sub Brand:

TESYS K

Tc Connection:

SCREW CLAMP TERMINALS 1 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-2.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 2 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMA.FLEXIBLE WITH CABLE END

Type:

MECHANICAL,REVERSING CONTACTOR,REVERSING CONTACTOR

Voltage:

690 Volt

Widths:

90 mm

SoneparProductId:

SKU_US_26345435

LP2K0610BD is a compact 3-pole TeSys K reversing contactor from Schneider Electric for motor applications. Rated 6A AC-3 2.2kW@400V, it includes a 24V DC coil, 1NO auxiliary contact, a mechanical interlock and a pre-wired reversing circuit. LP2K0610BD is a 3-pole TeSys K reversing contactor from Schneider Electric for simple motor applications rated up to 2.2kW@400V. Very compact, DIN-rail compatible, it is assembled with a mechanical interlock and a pre-wired reversing circuit. It can be easily integrated into all control systems thanks to its 24V DC coil and 1NO built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Ready for connection to all control systems thanks to a 24V DC control voltage and 2NO built-in auxiliary contact. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA1KN22; LA1KN11; LA4KE1B; LA4KC1B; LA1KN40; LA1KN31; LA1KN20; LA1KN04; LA1KN02; LA1KN13; LA9D90; LA1KN22M; LA1KN11M; LA2KT2E; LA4KC2B - Cross Sell Products: GV2ME08; GV2ME10; GV2ME07; GV2ME06; GV2ME05; LR2K0308; LR2K0312; LR2K0307; LR2K0310; LR2K0306; GV2LE10; LR2K0305; GV2LE08; GV2LE07; LR2K0303; LR2K0304; GV2LE06; LR2K0302; GV2LE05; LR7K0310; GV2LE04; GV2LE03 - Related Products: GV2ME08; LR2K0305; LR2K0306; LR2K0307; LR2K0308; LR2K0310; LR2K0312
