Square-D / Schneider - Square D LP2K0901BD 575 VAC 9 Amp 3-Pole 1NC Screw Clamp Terminal Reversing IEC Contactor

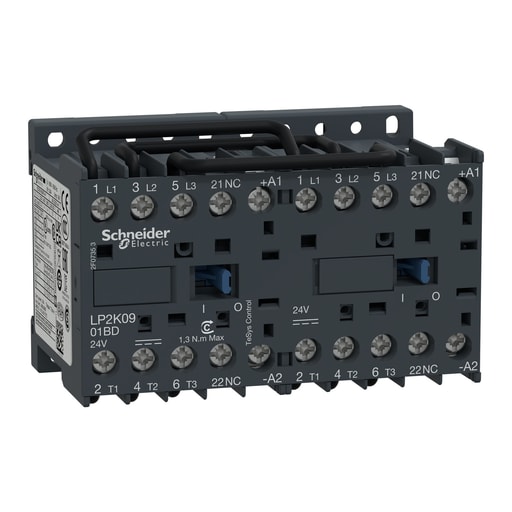

LP2K0901BD is a compact 3-pole TeSys K reversing contactor from Schneider Electric for motor applications. Rated 9A AC-3 4kW@400V, it includes a 24V DC coil, 1NC auxiliary contact, a mechanical interlock and a pre-wired reversing circuit. LP2K0901BD is a 3-pole TeSys K reversing contactor from Schneider Electric for simple motor applications rated up to 4kW@400V. Very compact, DIN-rail compatible, it is assembled with a mechanical interlock and a pre-wired reversing circuit. It can be easily integrated into all control systems thanks to its 24V DC coil and 1NC built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Ready for connection to all control systems thanks to a 24V DC control voltage and 2NC built-in auxiliary contact. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA1KN22; LA1KN11; LA4KE1B; LA4KC1B; LA1KN40; LA1KN31; LA1KN20; LA1KN04; LA1KN02; LA1KN13; LA9D90; LA1KN22M; LA1KN11M; LA2KT2E; LA4KC2B - Cross Sell Products: GV2ME14; LR2K0314; LR2K0316; GV2LE14 - Related Products: GV2ME08; LR2K0305; LR2K0306; LR2K0307; LR2K0308; LR2K0310; LR2K0312; LR2K0314
