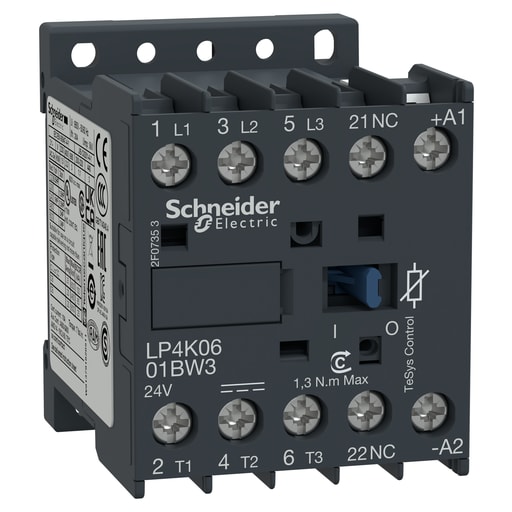

Square-D / Schneider - Square D LP4K0601BW3 600 VAC 6 Amp 3-Pole 1NC Screw Clamp Terminal Reversing IEC Contactor

Essential specifications

12-Digit UPC - 389110428554
Applications - MOTOR CONTROL
Catalog Number - LP4K0601BW3
Coil Voltage - POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110428551

Part #

400569

Catalog #

LP4K0601BW3

Commercial reference

LP4K0601BW3

12-Digit UPC:

389110428554

Applications:

MOTOR CONTROL

Catalog Number:

LP4K0601BW3

Coil Voltage:

POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ

Country of Origin:

Indonesia

Depths:

57 mm

ERP_productname:

SQD LP4K0601BW3 CONTACTOR, TESYS K, 3P, AC-3, LT OR EQ TO 440V, 6A, 1 NC AUX, 24VDC COIL

Family Brand Name:

Schneider Electric

Heights:

58 mm

Impedance:

3 MOhm - Ith 20 A 50 Hz For Power Circuit

Size:

45 MM,57 MM,58 MM

Sub Brand:

TESYS K

Tc Connection:

SCREW CLAMP TERMINALS 1 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-2.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 2 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMA.FLEXIBLE WITH CABLE END

Type:

CONTACTOR

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_26412606

TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50.C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA1KN11; LA1KN20; LA1KN02; LA9D90; LA2KT2E; LA2KT2U - Cross Sell Products: GV2ME08; GV2ME10; GV2ME07; GV2ME06; GV2ME05; LR2K0308; LR2K0312; LR2K0307; LR2K0310; LR2K0306; GV2LE10; LR2K0305; GV2LE08; GV2LE07; LR2K0303; LR2K0304; GV2LE06; LR2K0302; GV2LE05; LR7K0310; GV2LE04; GV2LE03
