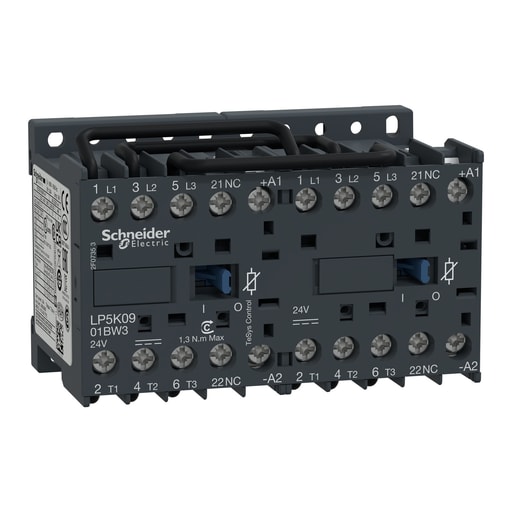

Square-D / Schneider - Square D LP5K0901BW3 575 VAC 9 Amp 3-Pole 1NC Screw Clamp Terminal Reversing IEC Contactor

Essential specifications

12-Digit UPC - 785901641988
Applications - CONTROL,MOTOR CONTROL-RESISTIVE LOAD
Catalog Number - LP5K0901BW3
Coil Voltage - 24 V DC,POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ
Country of Origin - France

Packaging

1 ea

EAN

03389110501650

Part #

200920

Catalog #

LP5K0901BW3

Commercial reference

LP5K0901BW3

12-Digit UPC:

785901641988

Applications:

CONTROL,MOTOR CONTROL-RESISTIVE LOAD

Catalog Number:

LP5K0901BW3

Coil Voltage:

24 V DC,POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ

Country of Origin:

France

Depths:

57 mm

ERP_productname:

SQD LP5K0901BW3 REVERSING CONTACTOR 575VAC 9A IEC

Family Brand Name:

Schneider Electric

Heights:

58 mm

Impedance:

3 MOhm - Ith 20 A 50 Hz For Power Circuit

Size:

57 MM,58 MM,90 MM

Sub Brand:

TESYS K

Tc Connection:

SCREW CLAMP TERMINALS 1 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-2.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 2 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMA.FLEXIBLE WITH CABLE END

Type:

MECHANICAL,REVERSING CONTACTOR

Voltage:

690 Volt

Widths:

90 mm

SoneparProductId:

SKU_US_26277673

TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides low consumption 24V DC coils with transient suppressor module, 2NC built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50.C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA1KN11; LA1KN20; LA1KN02; LA9D90; LA2KT2E; LA2KT2U - Cross Sell Products: GV2ME14; LR2K0314; LR2K0316; GV2LE14
