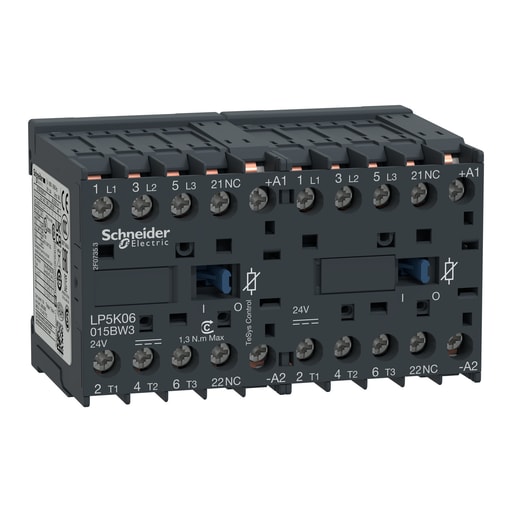

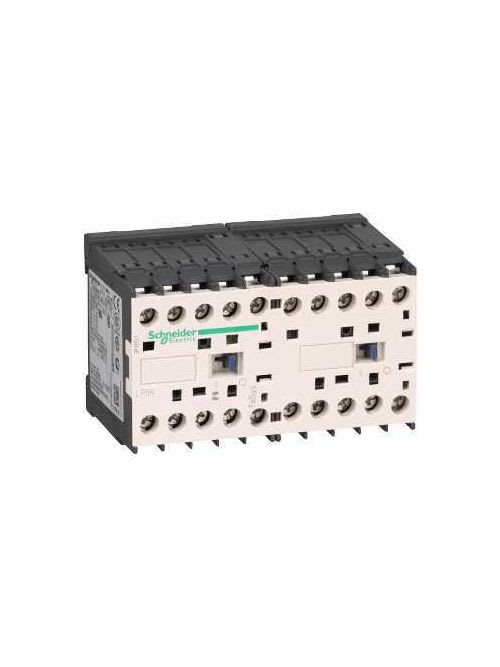

Square-D / Schneider - Square D LP5K12015BW3 575 VAC 12 Amp 3-Pole 1NC Screw Clamp Terminal Reversing IEC Contactor

TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides low consumption 24V DC coils with transient suppressor module, 2NC built-in auxiliary contacts, connection by solder pins for printed circuit boards. For operating rates until 600 cycles/hour in AC-3 and environments until 50.C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA1KN11; LA1KN20; LA1KN02; LA9D90; LA2KT2E; LA2KT2U
