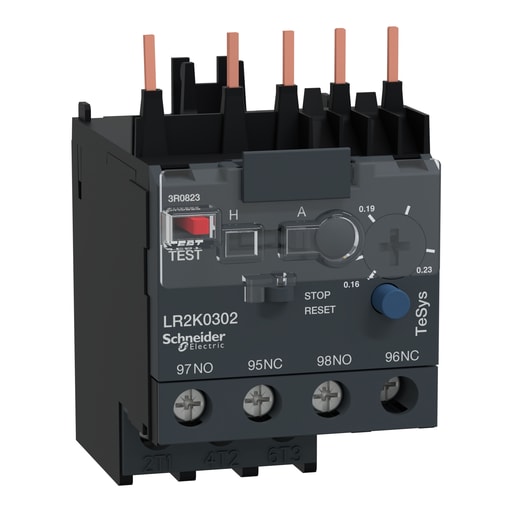

Square-D / Schneider - Square D LR2K0302 600 Volt 0.23 Amp 3-Pole 1NO 1NC Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

LR2K0302 is a TeSys LRK thermal overload relay from Schneider Electric to be used with a TeSys K contactors. It protects motors 0.06kW@400V thanks to a thermal range 0.16-0.23A, a tripping class 10A and phase unbalance protection. LR2K0302 is a TeSys LRK thermal overload relay from Schneider Electric for direct mounting on TeSys K contactors. With a thermal setting range 0.16-0.23A, a tripping class 10A and phase unbalance detection, it protects motors 0.06kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1K06 to form a compact starter. Light and compact, 45mm wide. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LA7K0064). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA7K0064 - Cross Sell Products: LP1K0610BD; LC1K0610M7; LP1K0601BD; LC1K0610B7; LC1K0610P7; LC1K0601M7; LP1K0610BD3; LP4K0610BW3; LC1K0601B7; LP4K0601BW3; LP2K0610BD; LC1K0610F7; LC1K0601F7; LP1K0601BD3; LC1K0601P7; LC1K0601E7; LP1K0601ED; LC1K0610Q7; LP2K0601BD; LC2K0601B7; LC1K0610E7; LC2K0610P7; LC1K0610U7; LP4K0610FW3; LC2K0601F7; LP1K0610MD; LP5K0601BW3; LC2K0610B7; LC1K0610G7; LC2K0601B72; LC1K0610T7; LC1K0610M72; LC2K0601P7; LP1K0610JD; LC2K0601M7; LP2K0601BD3; LC1K0601U7; LP1K0610ED; LP4K0610EW3; LC1K0610L7; LC2K0610M7; LP2K0610BD3; LC1K0601D7; LC1K0601N7; LC2K0601U7; LP5K0610BW3; LC2K0601E7; LC1K0610F7TQ; LC1K0601F72; LC2K0610F7; LC2K0610U7; LC2K0610E7; LC1K0610F72; LC1K0610N7; LP1K0610FD; LC7K0601M7; LC1K0601G7; LP1K0601FD; LC2K0601G7
