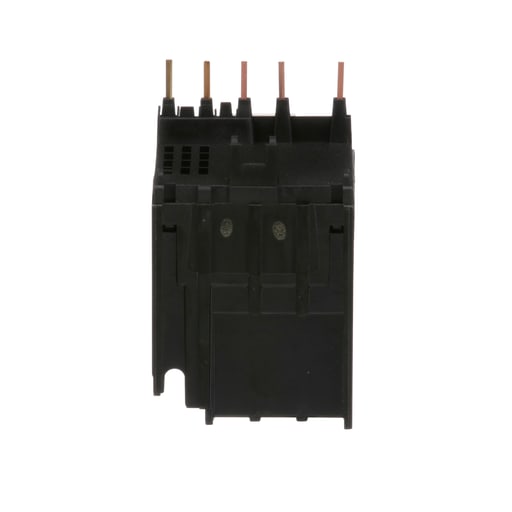

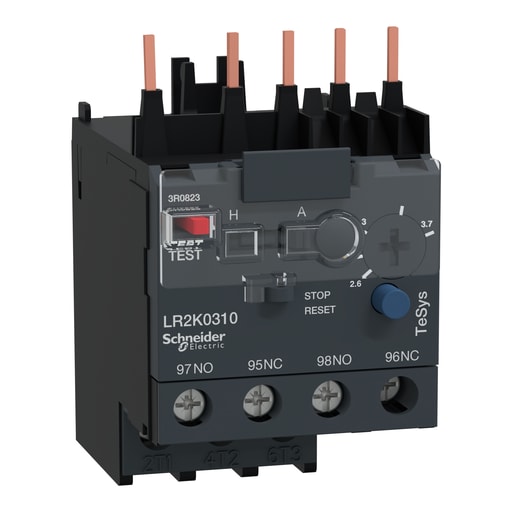

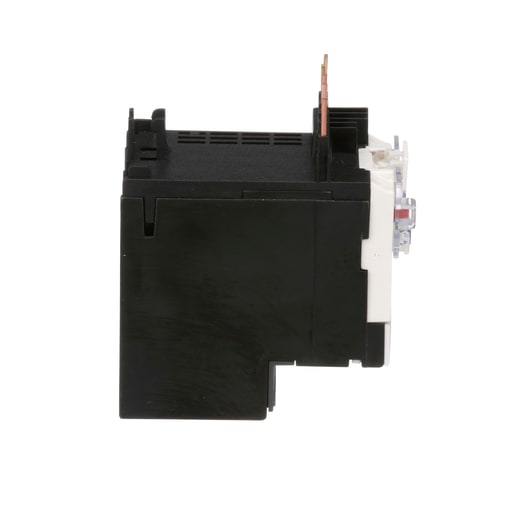

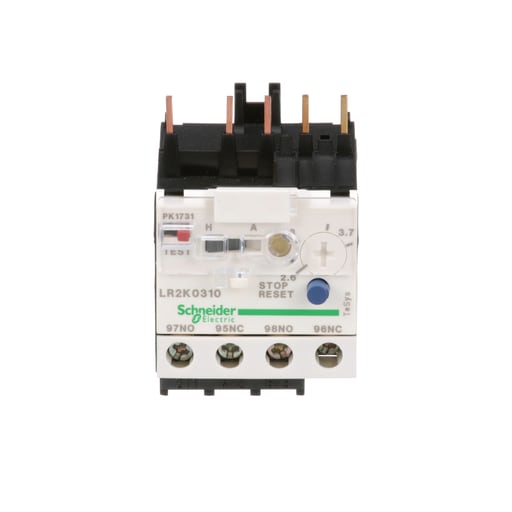

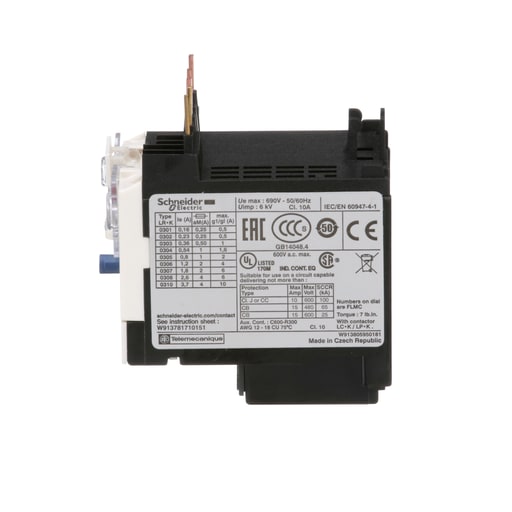

Square-D / Schneider - Square D LR2K0310 600 Volt 3.7 Amp 3-Pole 1NO 1NC Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

TeSys LRK thermal overload relay, 3.7A/690V, thermal setting range 2.6-3.7A, tripping class 10A, for protection of 3-phase motors 1.1-1.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test slide switch for simulation of a tripping, reset/stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1K06-K16. Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA7K0064 - Cross Sell Products: LP1K0610BD; LC1K0610M7; LP1K0601BD; LC1K0610B7; LC1K0610P7; LC1K0601M7; LP1K0610BD3; LP4K0610BW3; LC1K0601B7; LP4K0601BW3; LP2K0610BD; LC1K0610F7; LC1K0601F7; LP1K0601BD3; LC1K0601P7; LC1K0601E7; LP1K0601ED; LC1K0610Q7; LP2K0601BD; LC2K0601B7; LC1K0610E7; LC2K0610P7; LC1K0610U7; LP4K0610FW3; LC2K0601F7; LP1K0610MD; LP5K0601BW3; LC2K0610B7; LC1K0610G7; LC2K0601B72; LC1K0610T7; LC1K0610M72; LC2K0601P7; LP1K0610JD; LC2K0601M7; LP2K0601BD3; LC1K0601U7; LP1K0610ED; LP4K0610EW3; LC1K0610L7; LC2K0610M7; LP2K0610BD3; LC1K0601D7; LC1K0601N7; LC2K0601U7; LP5K0610BW3; LC2K0601E7; LC1K0610F7TQ; LC1K0601F72; LC2K0610F7; LC2K0610U7; LC2K0610E7; LC1K0610F72; LC1K0610N7; LP1K0610FD; LC7K0601M7; LC1K0601G7; LP1K0601FD; LC2K0601G7
