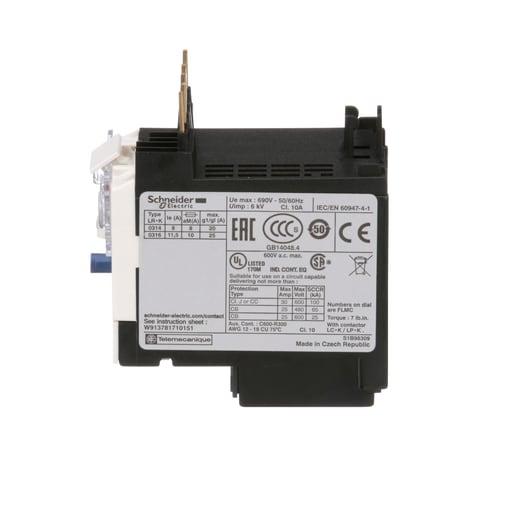

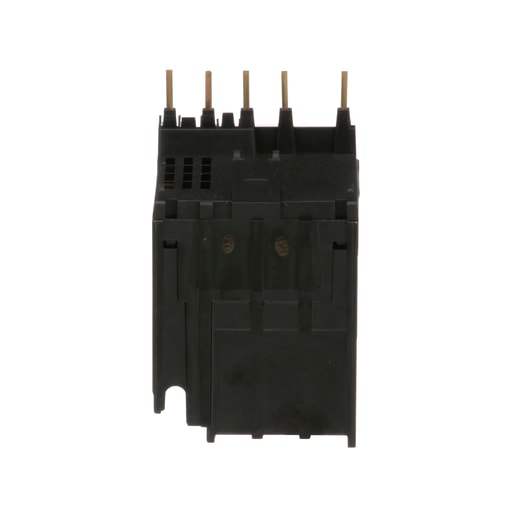

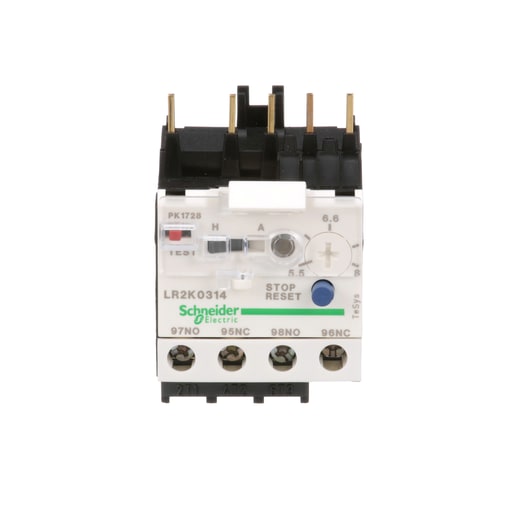

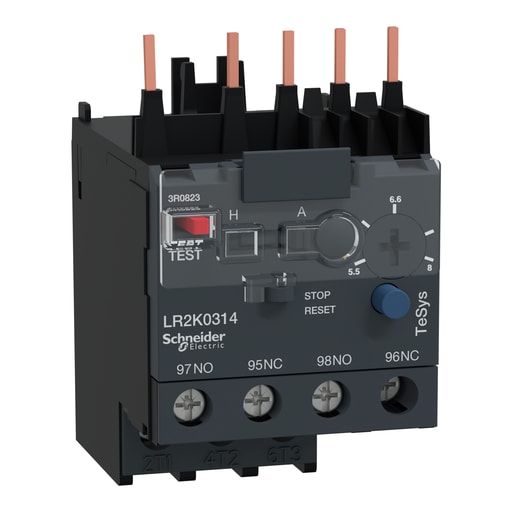

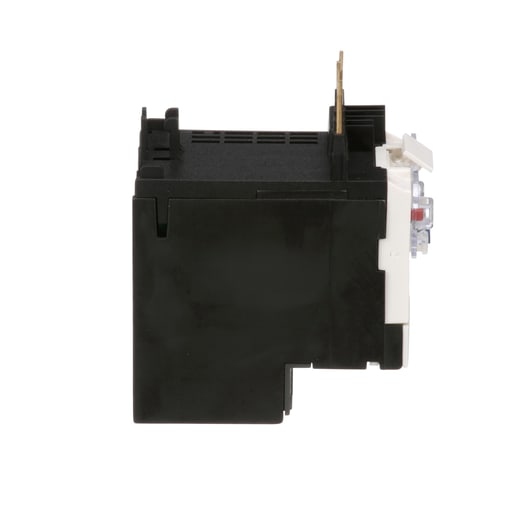

Square-D / Schneider - Square D LR2K0314 600 Volt 8 Amp 3-Pole 1NO 1NC Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

TeSys K overload relays are designed to be used with TeSys K contactors to make a motor starter. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 5.5 to 8 amperes. This trip current rating is calibrated per Class 10A. Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA7K0064 - Cross Sell Products: LP1K0910BD; LC1K0910M7; LP1K0901BD; LC1K0910B7; LC1K0910P7; LC7K0901M7; LP1K0910BD3; LC1K0901M7; LP4K0910BW3; LC1K0901B7; LP4K0901BW3; LC1K0910B7TQ; LP1K0901BD3; LC1K0901P7; LC1K0910F7; LC1K0901F7; LC2K0901E7; LC1K0910U7; LC2K0901B7; LC1K0910V7; LC2K0910B7; LP2K0901BD; LP1K0901FD; LC1K0901E7; LP5K0901BW3; LC1K0910Q7; LC1K0910E7; LP2K0910BD3; LC2K0901P7; LP1K0910JD; LC1K0910G7; LP2K0910BD; LC2K0910P7; LC2K0910E7; LP1K0901JD; LC2K0901F7; LP5K0910BW3; LC2K0901G7; LC2K0901M7; LC1K0901U7; LC1K09017B7; LP1K0910ED; LP1K0910FD; LC2K0910M7; LP2K0901BD3; LP4K0910JW3; LC1K0901G7; LC2K0910F7; LC1K0910M72; LC7K0910M7; LC2K0901U7; LP1K0910GD; LC1K0901Q7; LC1K0910L7; LC2K09107B7; LP2K0901ED; LC1K0901D7; LC2K0910U7; LC2K0910D7; LC1K0910D7; LC2K0901F72; LC1K0901T7; LC1K09107F7
