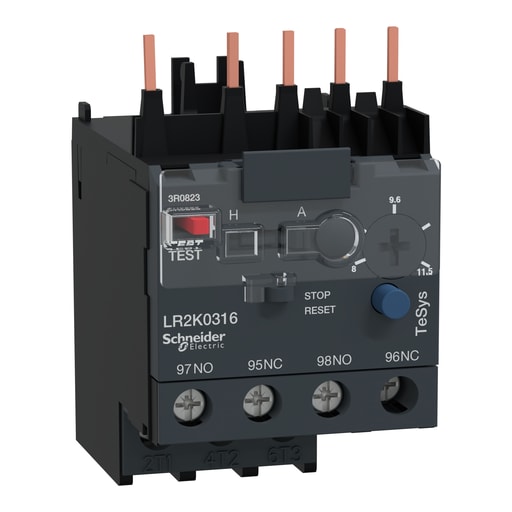

Square-D / Schneider - Square D LR2K0316 600 Volt 115 Amp 3-Pole 1NO 1NC Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

LR2K0316 is a TeSys LRK thermal overload relay from Schneider Electric to be used with a TeSys K contactors. It protects motors 4kW@400V thanks to a thermal range 8-11.5A, a tripping class 10A and phase unbalance protection. LR2K0316 is a TeSys LRK thermal overload relay from Schneider Electric for direct mounting on TeSys K contactors. With a thermal setting range 8-11.5A, a tripping class 10A and phase unbalance detection, it protects motors 4kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1K09 to form a compact starter. Light and compact, 45mm wide. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LA7K0064). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA7K0064 - Cross Sell Products: LP1K0910BD; LC1K0910M7; LP1K0901BD; LC1K0910B7; LC1K0910P7; LC7K0901M7; LP1K0910BD3; LC1K0901M7; LP4K0910BW3; LC1K0901B7; LP4K0901BW3; LC1K0910B7TQ; LP1K0901BD3; LC1K0901P7; LC1K0910F7; LC1K0901F7; LC2K0901E7; LC1K0910U7; LC2K0901B7; LC1K0910V7; LC2K0910B7; LP2K0901BD; LP1K0901FD; LC1K0901E7; LP5K0901BW3; LC1K0910Q7; LC1K0910E7; LP2K0910BD3; LC2K0901P7; LP1K0910JD; LC1K0910G7; LP2K0910BD; LC2K0910P7; LC2K0910E7; LP1K0901JD; LC2K0901F7; LP5K0910BW3; LC2K0901G7; LC2K0901M7; LC1K0901U7; LC1K09017B7; LP1K0910ED; LP1K0910FD; LC2K0910M7; LP2K0901BD3; LP4K0910JW3; LC1K0901G7; LC2K0910F7; LC1K0910M72; LC7K0910M7; LC2K0901U7; LP1K0910GD; LC1K0901Q7; LC1K0910L7; LC2K09107B7; LP2K0901ED; LC1K0901D7; LC2K0910U7; LC2K0910D7; LC1K0910D7; LC2K0901F72; LC1K0901T7; LC1K09107F7
