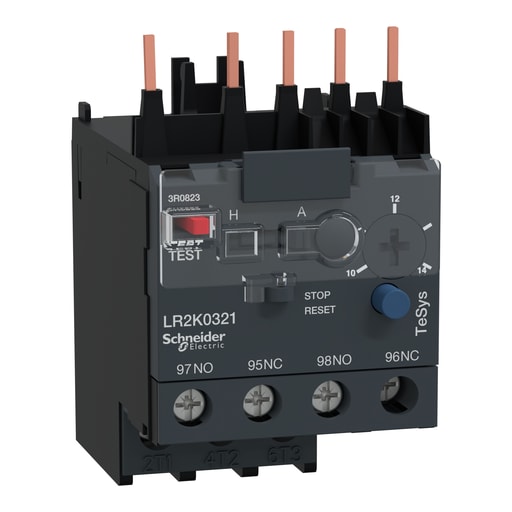

Square-D / Schneider - Square D LR2K0321 600 Volt 14 Amp 3-Pole 1NO 1NC Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

LR2K0321 is a TeSys LRK thermal overload relay from Schneider Electric to be used with a TeSys K contactors. It protects motors 5.5kW@400V thanks to a thermal range 10-14A, a tripping class 10A and phase unbalance protection. LR2K0321 is a TeSys LRK thermal overload relay from Schneider Electric for direct mounting on TeSys K contactors. With a thermal setting range 10-14A, a tripping class 10A and phase unbalance detection, it protects motors 5.5kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1K12 to form a compact starter. Light and compact, 45mm wide. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LA7K0064). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA7K0064 - Cross Sell Products: LP1K1210BD; LP1K1201BD; LC1K1210P7; LC1K1210M7; LC1K1210B7; LP4K1210BW3; LC1K1201P7; LP1K1210BD3; LC2K1210F7; LP1K1210JD; LC2K1210B7; LC1K1210F7; LP1K1201BD3; LC1K1201B7; LC1K1201M7; LP4K1201BW3; LC2K12107B7; LP2K1201BD; LC1K1210U7; LC1K1210G7; LC2K1201B7; LC1K1201F7; LP2K1210BD; LC1K1210Q7; LC2K1201E7; LC1K1201E7; LC1K1210E7; LP5K1201BW3; LP1K1210FD; LP2K1210BD3; LC1K1210L7; LC2K1201U7; LC2K1201F7; LC2K1210E7; LC1K1210N7; LP4K1210EW3; LC2K1201G7; LC2K1201M7; LP5K1210BW3; LC2K1210G7; LC2K1210K7
