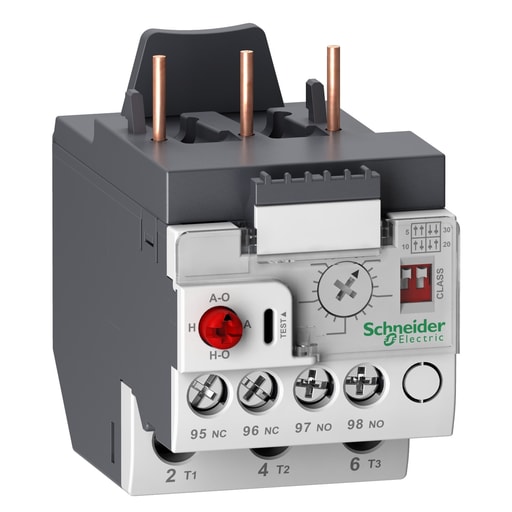

Square-D / Schneider - Square D LR9D08 690 Volt 1.6 to 8 Amp Screw Clamp Terminal Thermal Electronic Overload Relay

TeSys LR9D electronic overload relay, 8A/690V, thermal setting range 1.6-8A, selectable tripping class 5-10-20-30, for protection of 3-phase motors 0.75-3kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset as well as manual-automatic reset selector, dipswitches for tripping class selection, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. With a large thermal setting range 1.6-8A, a selectable tripping class 5-10-20-30 and phase unbalance detection, it protects motors 1.1 to 2.2kW@400V. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from contactor, with use of the terminal block LAD7B205 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHs/Reach). Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Compatible Products: LAD7B205; T02CN13G7; T36AN13G7; LA7D305; T36BN13G7; T36CN13G7; XB5AL84101; XB5AA86102; LA9F103 - Cross Sell Products: LC1D09B7; LC1D09G7; LC1D09P7; DF103; DF103V; GV2L14; GV2LE14
