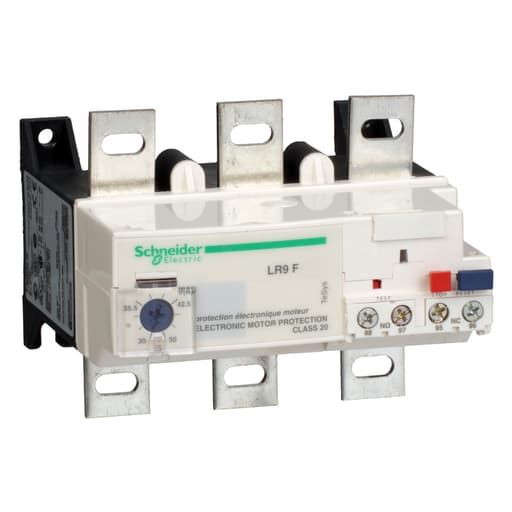

Square-D / Schneider - Square D LR9F5571 600 Volt 220 Amp 1NO 1NC Screw Clamp Terminal Solid State Thermal Overload Relay
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110640208
Applications - LC1F185...LC1F265;Motor protection
Catalog Number - LR9F5571
Country of Origin - France
Current - 5 mA
Packaging
1 ea
EAN
03389110640205
Part #
186436
Catalog #
LR9F5571
Commercial reference
LR9F5571
12-Digit UPC:
389110640208
Applications:
LC1F185...LC1F265;Motor protection
Catalog Number:
LR9F5571
Country of Origin:
France
Current:
5 mA
Depths:
123.5 mm
ERP_productname:
SQD LR9F5571 132-220A CLASS 20
Family Brand Name:
Schneider Electric
Heights:
101 mm
Number of Poles:
3 Pole
Size:
4.86 in
Sub Brand:
LR9F;TeSys LRF
Trip Type:
THERMAL - SOLID STATE/ELECTRONIC CLASS 20
Type:
Electronic thermal overload relay
Voltage:
1000 Volt
Widths:
115 mm
SoneparProductId:
SKU_US_26139656
TeSys LR9F electronic overload relay, thermal setting range 132-220A, class 20, for protection of motors 90-110kW@400V. to be mounted directly below a TeSys F 3-pole contactor LC1 F185, F225, F265, use of a support mounting plate LA7F901 is recommended (to be ordered separately). Motor protection includes thermal overload of 1-phase and 3-phase motors, phase failure, phase unbalance, prolonged starting times, stalled rotor conditions. On the front of the relay, it provides a thermal adjustement dial, buttons for test, stop & reset, a trip indicator, trip auxiliary contacts 1NO+1NC. Multi standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHs/Reach).
