Square-D / Schneider - Square D LT3SA00M 115/230 VAC 5 Amp 1NO 1NC Rail Mounting Automatic Reset Overload Relay

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901688228

  • Applications - FAULT INDICATION, VOLTAGE INDICATION

  • Catalog Number - LT3SA00M

  • Depths - 100 mm

  • ERP_productname - SQD LT3SA00M OVERLOAD RELAY 115VAC 5A IEC +OPTIONS

Packaging

  • 1 ea

EAN

Part #

227946

Catalog #

LT3SA00M

Commercial reference

LT3SA00M

12-Digit UPC:

785901688228

Applications:

FAULT INDICATION, VOLTAGE INDICATION

Catalog Number:

LT3SA00M

Depths:

100 mm

ERP_productname:

SQD LT3SA00M OVERLOAD RELAY 115VAC 5A IEC +OPTIONS

Family Brand Name:

Schneider Electric

Heights:

100 mm

Input Voltage:

1500 ohm

Size:

100 MM,100 MM,22.5 MM

Sub Brand:

LT3SA

Type:

THERMISTOR PROTECTION UNITS

Widths:

22.5 mm

SoneparProductId:

SKU_US_26380324

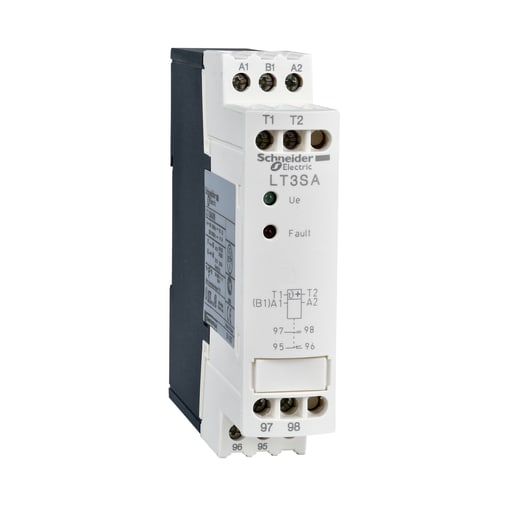

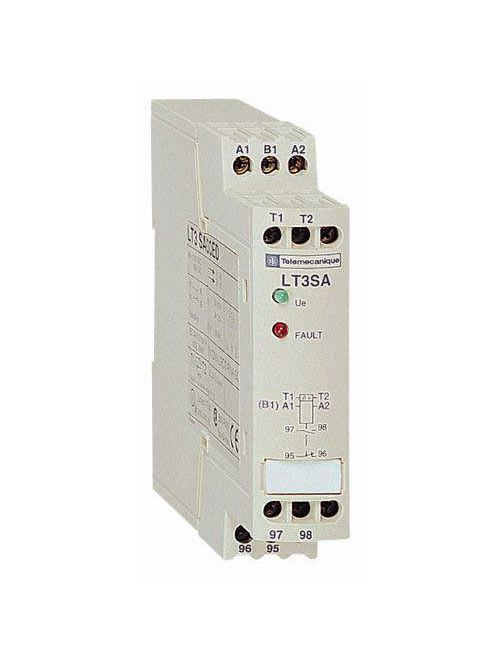

TeSys LT3 thermistor protection unit for use with PTC probes, with automatic reset and fault indicator on front, dual voltage supply 115 or 230V AC 50/60Hz. To be used with a combination of PTC probes impedance lower than 1500 Ohm at 25.C, the trip impedance zone is 2700-3100 Ohm, the automatic reset impedance zone is 1500-1650 Ohm. It provides 2 auxiliary contacts 1NO+1NC for fault signaling. DIN rail mounting, connections by cage terminals. PTC thermistor probes DA1TT, DA1TS available (to be ordered separately). Multi-standards certified (IEC, UL, CSA), Green Premium compliant (RoHs/Reach).
