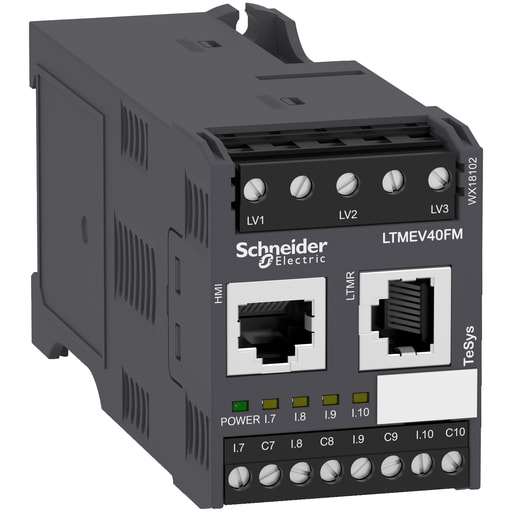

Square-D / Schneider - Square D LTMEV40FM 100 to 240 VAC 4-Input Expansion Module

Essential specifications

12-Digit UPC - 389119404931
Applications - Equipment monitoring and control
Catalog Number - LTMEV40FM
Country of Origin - China
Depths - 120.7 mm

Packaging

1 ea

EAN

03389119404938

Part #

184353

Catalog #

LTMEV40FM

Commercial reference

LTMEV40FM

12-Digit UPC:

389119404931

Applications:

Equipment monitoring and control

Catalog Number:

LTMEV40FM

Country of Origin:

China

Depths:

120.7 mm

ERP_productname:

SQD LTMEV40FM EXPANSION MODULE AC

Enclosure:

IP 54

Family Brand Name:

Schneider Electric

Heights:

61 mm

Size:

4.75 in

Sub Brand:

LTME;TeSys T

Tc Connection:

CONTROL CIRCUIT CONNECTOR 1 0.25-2.5 MMA. AWG 24...AWG 14)FLEXIBLE WITH CABLE END-CONTROL CIRCUIT CONNECTOR 1 0.2-2.5 MMA. AWG 24...AWG 14)FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 1 0.25-2.5 MMA. AWG 24...AWG 14)FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 1 0.2-2.5 MMA. AWG 24...AWG 14)SOLID WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 2 0.2-1 MMA. AWG 24...AWG 14)FLEXIBLE WITH CABLE END-CONTROL CIRCUIT CONNECTOR 2 0.2-1.5 MMA. AWG 24...AWG 14)FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 2 0.5-1.5 MMA. AWG 24...AWG 14)FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 2 0.2-1 MMA. AWG 24...AWG 14)SOLID WITHOUT CABLE END

Type:

Extension module

Voltage:

100...240 Volt AC 50/60 HZ

Widths:

45 mm

SoneparProductId:

SKU_US_31503884

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. TeSys T has a number of components that increase the flexibility of the system. This expansion module adds functionalities to the TeSys T controller. It adds voltage mesurement between phases up to 690 V nominal and 4 additional inputs. Module has 4 discrete logic inputs. 120 to 240 VAC is used to power the module. Module has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.
