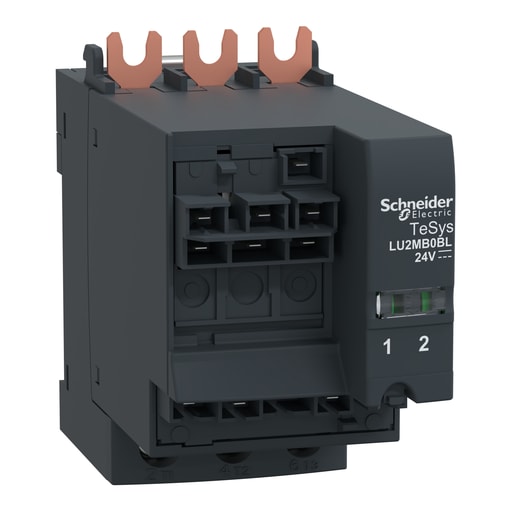

Square-D / Schneider - Square D LU2MB0BL Reverser Block DIRECT MNT.W/0 TERMS.

12-Digit UPC:

389110363770

Applications:

USED IN CONJUNCTION WITH A NON-REVERSING POWER BASE WITHOUT CONNECTIONS TO CREATE A REVERSING STARTER-CONTROLLER.

Catalog Number:

LU2MB0BL

Country of Origin:

France

Current:

120 mA

Depths:

105 mm

ERP_productname:

SQD LU2MB0BL REV.BLK. DIRECT MNT.W/0 TERMS. 24VDC

Enclosure:

IP20 FRONT PANEL AND WIRED TERMINALS CONFORMING TO IEC 60947-1-IP20 OTHER FACES CONFORMING TO IEC 60947-1-IP40 FRONT PANEL OUTSIDE CONNECTION ZONE CONFORMING TO IEC 60947-1

Family Brand Name:

Schneider Electric

Heights:

80 mm

Mounting Type:

Direct Mounting

Sub Brand:

LU2MB,TESYS

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 0.34-1.5 MMA. 3 MM) FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-6 MMA. 4 MM) FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-6 MMA. 4 MM) RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1.5-6 MMA. 4 MM) FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 0.75-1.5 MMA. 3 MM) FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 0.75-1.5 MMA. 3 MM) RIGID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 0.34-1.5 MMA. 3 MM) FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 0.75-1.5 MMA. 3 MM) FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 0.75-1.5 MMA. 3 MM) RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-10 MMA. 4 MM) RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-6 MMA. 4 MM) FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 2.5-10 MMA. 4 MM) FLEXIBLE WITHOUT CABLE END

Type:

REVERSER BLOCK

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_29221724
