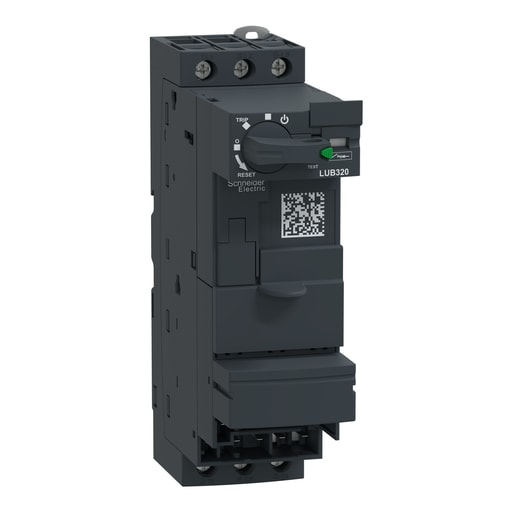

Square-D / Schneider - Square D LUB320 Advanced Power Base, 32A SELF PROT.STR W/CNTRL TERM

Essential specifications

12-Digit UPC - 389110362803
Amperage - 32 Amp
Applications - MOTOR
Catalog Number - LUB320
Country of Origin - France

Packaging

1 ea

EAN

03389110362800

Part #

108282

Catalog #

LUB320

Commercial reference

LUB320

12-Digit UPC:

389110362803

Amperage:

32 Amp

Applications:

MOTOR

Catalog Number:

LUB320

Country of Origin:

France

Depths:

126 mm

ERP_productname:

SQD LUB320 32A SELF PROT.STR W/CNTRL TERMS

Enclosure:

IP20 FRONT PANEL AND WIRED TERMINALS CONFORMING TO IEC 60947-1-IP20 OTHER FACES CONFORMING TO IEC 60947-1-IP40 FRONT PANEL OUTSIDE CONNECTION ZONE CONFORMING TO IEC 60947-1

Family Brand Name:

Schneider Electric

Heights:

154 mm

Number of Poles:

3 Pole

Size:

4.96 in

Sub Brand:

LUB,TESYS,TESYS U

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-10 MMA. RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-6 MMA. FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 2.5-10 MMA. FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-6 MMA. FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-6 MMA. RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1.5-6 MMA. FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT WITHOUT CONNECTION

Type:

Non reversing power base

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_31272070

TeSys U advanced power base, 3 poles (3NO), 32A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. It is equipped with auxiliary signaling contacts (1NO+1NC), a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Compatible Products: LUA1C20; LUA1C11; LUFN20; LUFN11; LU9BN11; LU9M1; LUFC00; LU9BN11C; LUFV2; LU9MR1C; LU9MR1; LULC033; LAD90; LUFDA01; LULC15; LU9BN11L; LUFN02; LUFDA10; ASILUFC51; LUALB1; LUA8E20; GVAPA1; LU9MRC; LU9APN22; GVAPR54; LUFDH11; LU9APN21; GVAPB54; LULC08; GVAPK12; GVAPL01; LULC09; LUFW10; LUFP7; ASILUFC5; LU9MRL; LU9APN24; GVAPR65; LUFP9; GVAPB65 - Cross Sell Products: LUCA05BL; LUCA12BL; LUCA1XBL; LUCB05BL; LUCB12BL; LUCA05FU; LUCA12FU; LUCA18BL; LUCA32BL; LUCA05B; LUCB32BL; LUCA32FU; LUCA12B; LUCB18BL; LUCB1XBL; LUCA18FU; LU2MB0BL; LUCAX6BL; LUCB05FU; LUCA1XFU; LUCB12FU; LUCA32B; LUCB32FU; LUCA18B; LUCA1XB; LU6MB0BL; LUCB18FU; LUCBX6BL; LUCD12BL; LUCD32BL; LUCC05BL; LUCC12BL; LUCD32B; LUCB1XFU; LUCD32FU; LUCC32BL; LUCC1XBL; LUCD05BL; LUCB12B; LUCD1XBL; LUCD18BL; LUCD12FU; LU2MB0FU; LUCB18B; LUCD05FU; LUCCX6BL; LUCB05B; LUCC12FU; LUCAX6FU; LUCB32B; LUCC05FU; LUCC32FU; LUCB1XB; LUCC12B; LUCC18BL; LUCD18FU; LU2MB0B; LUCC1XB; LUCBX6FU; LUCC18FU; LUCC1XFU; LU6MB0FU; LUCAX6B; LUCC05B; LUCD1XFU; LUCA05ES; LUCA32ES; LUCDX6BL; LUCA1XES; LUCCX6B; LUCB32ES; LUCB05ES; LUCA12ES; LU6MB0B; LUCB12ES; LUCD32ES; LUCD05ES; LUCD12ES; LUCA18ES; LUCB18ES; LUCDX6FU; LUCD1XES
