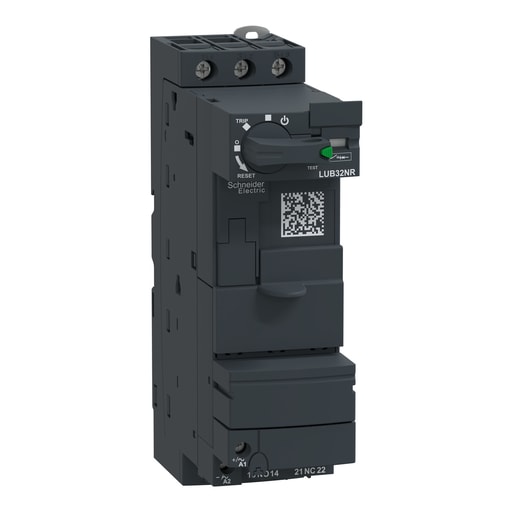

Square-D / Schneider - Square D LUB32NR Combination Motor Starter, TESYS U FVNR NEMA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389118367237
Applications - TESYS U MOTOR STARTER
Catalog Number - LUB32NR
Country of Origin - USA
Depths - 126 mm
Packaging
1 ea
EAN
03389118367234
Part #
207379
Catalog #
LUB32NR
Commercial reference
LUB32NR
12-Digit UPC:
389118367237
Applications:
TESYS U MOTOR STARTER
Catalog Number:
LUB32NR
Country of Origin:
USA
Depths:
126 mm
ERP_productname:
SQD LUB32NR TESYS U FVNR NEMA SZ 1 SELF PROTECTED STARTER
Family Brand Name:
Schneider Electric
Heights:
154 mm
Size:
NEMA 1
Sub Brand:
TESYS
Type:
POWER BASE
Voltage:
600 VAC
Widths:
45 mm
SoneparProductId:
SKU_US_32137785
TeSys U motor starters are integrated starters. TeSys U can be configured to fit specific applications. This TeSys U standard power base has 3 poles that are rated 32A at 600V. This power base is rated for 7.5HP at 200-208VAC, 7.5HP at 240VAC, 10HP at 480VAC and 10HP at 600VAC three phase. Contactor is also rated for 2HP at 115VAC and 3HP at 240VAC single phase. Power base is rated NEMA Size 1. Power base has screw clamp terminals which are non-removable. The power base is 6.42 inches tall, 1.77 inches wide and 5.31 inches deep. Power base is UL Listed and CSA Certified. Power base meets the requirements of RoHS/REACh making it a Green Premium product. Compatible Products: LAD90
