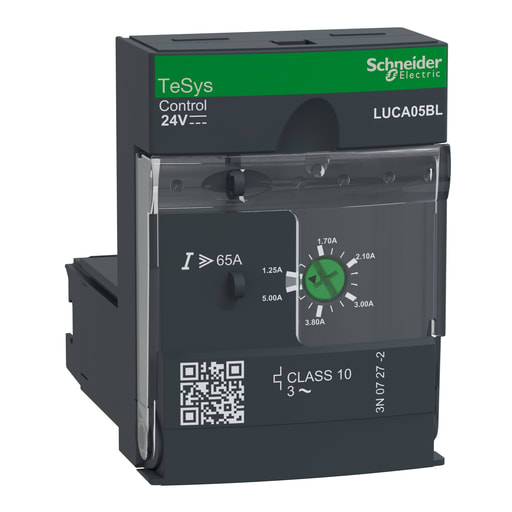

Square-D / Schneider - Square D LUCA05BL 24 VDC 1.25 to 5 Amp 3-Phase Class 10 Thermal Motor Starter Standard Control Unit

Essential specifications

12-Digit UPC - 389110363831
Applications - Basic protection requirements for motor starters: overload and short-circuit
Catalog Number - LUCA05BL
Country of Origin - France
Depths - 60 mm

Packaging

1 ea

EAN

03389110363838

Part #

120749

Catalog #

LUCA05BL

Commercial reference

LUCA05BL

12-Digit UPC:

389110363831

Applications:

Basic protection requirements for motor starters: overload and short-circuit

Catalog Number:

LUCA05BL

Country of Origin:

France

Depths:

60 mm

ERP_productname:

SQD LUCA05BL STD.CNTRL.UNIT-CL10-3PH 1.25-5A 24VDC

Enclosure:

IP20 FRONT PANEL AND WIRED TERMINALS CONFORMING TO IEC 60947-1-IP20 OTHER FACES CONFORMING TO IEC 60947-1-IP40 FRONT PANEL OUTSIDE CONNECTION ZONE CONFORMING TO IEC 60947-1

Family Brand Name:

Schneider Electric

Heights:

66 mm

Size:

2.36 in

Sub Brand:

LUCA,TESYS,TESYS U

Type:

Standard control unit

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_25583901

TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 1.5kW@400V. It provides full protection to motors with a rated current Ir 1.25-5A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Compatible Products: LUA1C20; LUA1C11; LUFN20; LUFN11; LUFN02; LUA8E20 - Cross Sell Products: LUB12; LUB32; LU2B12BL; LUB120; LUB320; LU2B32BL
