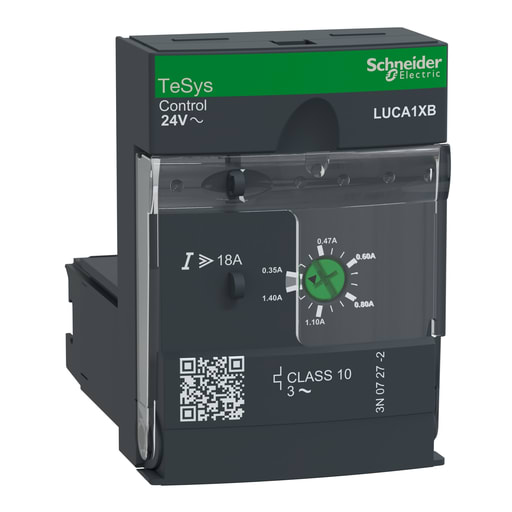

Square-D / Schneider - Square D LUCA1XB Standard Control Unit, CL10-3PH 0.3-1.4A

Essential specifications

12-Digit UPC - 785901221951
Applications - Motor control;Motor protection
Catalog Number - LUCA1XB
Country of Origin - France
Depths - 60 mm

Packaging

1 ea

EAN

03389110363890

Part #

217131

Catalog #

LUCA1XB

Commercial reference

LUCA1XB

12-Digit UPC:

785901221951

Applications:

Motor control;Motor protection

Catalog Number:

LUCA1XB

Country of Origin:

France

Depths:

60 mm

ERP_productname:

SQD LUCA1XB STD.CNTRL.UNIT-CL10-3PH 0.3-1.4A 24VAC

Enclosure:

IP20 FRONT PANEL AND WIRED TERMINALS CONFORMING TO IEC 60947-1-IP20 OTHER FACES CONFORMING TO IEC 60947-1-IP40 FRONT PANEL OUTSIDE CONNECTION ZONE CONFORMING TO IEC 60947-1

Family Brand Name:

Schneider Electric

Heights:

66 mm

Size:

2.36 in

Sub Brand:

LUCA;TeSys;TeSys U

Type:

Standard control unit

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_75290752

TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.25kW@400V. It provides full protection to motors with a rated current Ir 0.35-1.4A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Compatible Products: LUA1C20; LUA1C11; LUFN20; LUFN11; LUFN02; LUA8E20 - Cross Sell Products: LUB12; LUB32; LUB120; LUB320; LU2B12B; LU2B32B
