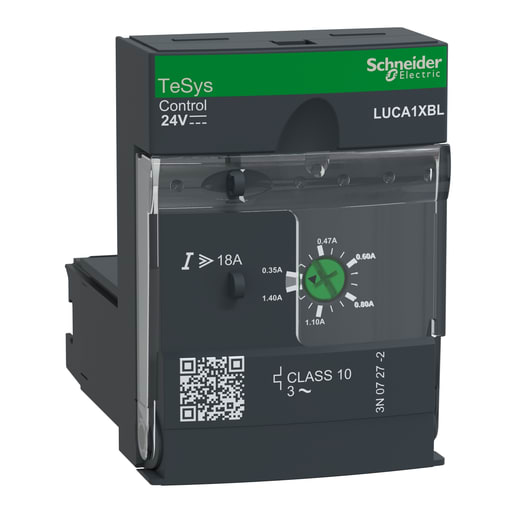

Square-D / Schneider - Square D LUCA1XBL 24 VDC 3 to 14 Amp 3-Phase Class 10 Thermal Motor Starter Standard Control Unit

TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.25kW@400V. It provides full protection to motors with a rated current Ir 0.35-1.4A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Compatible Products: LUA1C20; LUA1C11; LUFN20; LUFN11; LUFN02; LUA8E20 - Cross Sell Products: LUB12; LUB32; LU2B12BL; LUB120; LUB320; LU2B32BL
