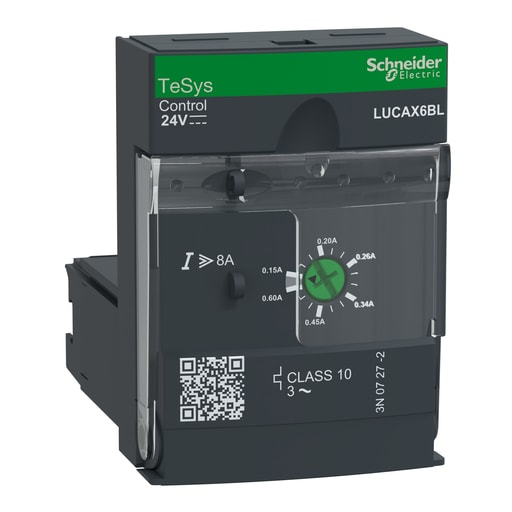

Square-D / Schneider - Square D LUCAX6BL Standard Control Unit, CL10-3PH 0.15-0.6A

Essential specifications

12-Digit UPC - 389110363817
Applications - ASILUFC5-ASILUFC51-LUFC00-LUFN..
Catalog Number - LUCAX6BL
Country of Origin - France
Depths - 60 mm

Packaging

1 ea

EAN

03389110363814

Part #

182503

Catalog #

LUCAX6BL

Commercial reference

LUCAX6BL

12-Digit UPC:

389110363817

Applications:

ASILUFC5-ASILUFC51-LUFC00-LUFN..

Catalog Number:

LUCAX6BL

Country of Origin:

France

Depths:

60 mm

ERP_productname:

SQD LUCAX6BL STD CNTRL UNIT-CL10-3PH 0.15-0.6A 24VAC

Enclosure:

IP20 FRONT PANEL AND WIRED TERMINALS CONFORMING TO IEC 60947-1-IP20 OTHER FACES CONFORMING TO IEC 60947-1-IP40 FRONT PANEL OUTSIDE CONNECTION ZONE CONFORMING TO IEC 60947-1

Family Brand Name:

Schneider Electric

Heights:

66 mm

Sub Brand:

LUCA,TESYS,TESYS U

Type:

STANDARD CONTROL UNIT

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_30318238

TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.09kW@400V. It provides full protection to motors with a rated current Ir 0.15-0.6A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Compatible Products: LUA1C20; LUA1C11; LUFN20; LUFN11; LUFN02; LUA8E20 - Cross Sell Products: LUB12; LUB32; LU2B12BL; LUB120; LUB320; LU2B32BL
