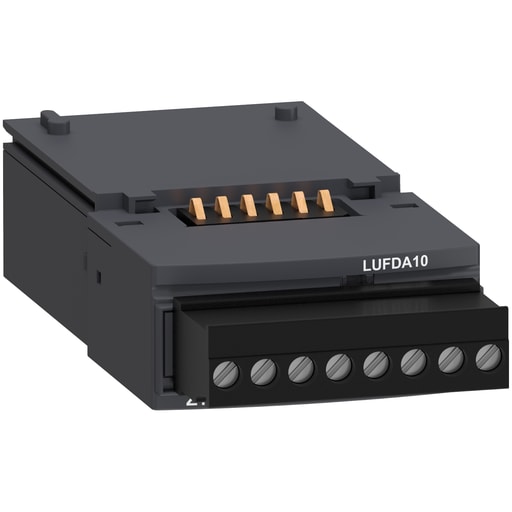

Square-D / Schneider - Square D LUFDA10 24 to 240 VAC/VDC 1NO Screw Clamp Terminal Starter Function Module
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110109842
Applications - LUCB;LUCC;LUCD
Catalog Number - LUFDA10
Country of Origin - France
Current - 1.1 mA
Packaging
1 ea
EAN
03389110109849
Part #
136223
Catalog #
LUFDA10
Commercial reference
LUFDA10
12-Digit UPC:
389110109842
Applications:
LUCB;LUCC;LUCD
Catalog Number:
LUFDA10
Country of Origin:
France
Current:
1.1 mA
ERP_productname:
SQD LUFDA10 AUX FUNCTION MODULE, AUTO/REMOTE RESET
Enclosure:
OPEN
Family Brand Name:
Schneider Electric
Mounting Type:
Plug-In
Sub Brand:
LUF;TeSys
Tc Connection:
SCREW CLAMP TERMINALS
Type:
Function module
SoneparProductId:
SKU_US_26581354
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload tripping indication. It indicates the overload tripping and the reset done by the power base control pad or done remotely. It provides 1NO instantaneous contact rated 24-250V AC/DC 5A max. It requires an external power supply 24-240V AC or DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Cross Sell Products: LUCB05BL; LUCB12BL; LUB120; LUB320; LUCB32BL; LUCB18BL; LUCB1XBL; LUCB05FU; LUCB12FU; LUCB32FU; LUCB18FU; LUCBX6BL; LUCD12BL; LUCD32BL; LUCC05BL; LUCC12BL; LUCD32B; LUCB1XFU; LUCD32FU; LUCC32BL; LUCC1XBL; LUCD05BL; LUCB12B; LUCD1XBL; LUCD18BL; LUCD12FU; LUCB18B; LUCD05FU; LUCCX6BL; LUCB05B; LUCC12FU; LUCB32B; LUCC05FU; LUCC32FU; LUCB1XB; LUCC12B; LUCC18BL; LUCD18FU; LUCC1XB; LUCBX6FU; LUCC18FU; LUCC1XFU; LUCC05B; LUCD1XFU; LUCDX6BL; LUCCX6B; LUCB32ES; LUCB05ES; LUCB12ES; LUCD32ES; LUCD05ES; LUCD12ES; LUCB18ES; LUCDX6FU; LUCD1XES
