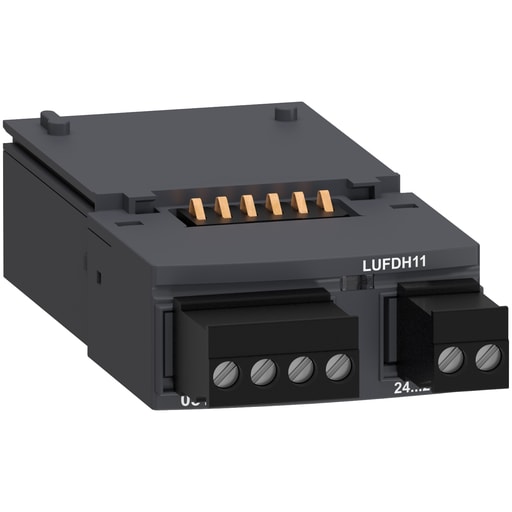

Square-D / Schneider - Square D LUFDH11 24 to 250 VAC/VDC Manual Reset Thermal Overload Function Module

Essential specifications

12-Digit UPC - 389119200359
Applications - LUCC;LUCB;LUCD
Catalog Number - LUFDH11
Country of Origin - France
Current - 1.1 mA

Packaging

1 ea

EAN

03389119200356

Part #

128250

Catalog #

LUFDH11

Commercial reference

LUFDH11

12-Digit UPC:

389119200359

Applications:

LUCC;LUCB;LUCD

Catalog Number:

LUFDH11

Country of Origin:

France

Current:

1.1 mA

ERP_productname:

SQD LUFDH11 AUX FUNCTION MODULE, MANUAL RESET

Family Brand Name:

Schneider Electric

Mounting Type:

Plug-In

Sub Brand:

LUF;TeSys

Tc Connection:

SCREW CLAMP TERMINALS 2 0.2-1 MMA. RIGID WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.25-1 MMA. FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.5-1 MMA. FLEXIBLE WITH CABLE END

Type:

Function module

SoneparProductId:

SKU_US_25682526

Function module, thermal overload signalling, TeSys Ultra, 1 NO + 1 NC Cross Sell Products: LUCB05BL; LUCB12BL; LUB120; LUB320; LUCB32BL; LUCB18BL; LUCB1XBL; LUCB05FU; LUCB12FU; LUCB32FU; LUCB18FU; LUCBX6BL; LUCD12BL; LUCD32BL; LUCC05BL; LUCC12BL; LUCD32B; LUCB1XFU; LUCD32FU; LUCC32BL; LUCC1XBL; LUCD05BL; LUCB12B; LUCD1XBL; LUCD18BL; LUCD12FU; LUCB18B; LUCD05FU; LUCCX6BL; LUCB05B; LUCC12FU; LUCB32B; LUCC05FU; LUCC32FU; LUCB1XB; LUCC12B; LUCC18BL; LUCD18FU; LUCC1XB; LUCBX6FU; LUCC18FU; LUCC1XFU; LUCC05B; LUCD1XFU; LUCDX6BL; LUCCX6B; LUCB32ES; LUCB05ES; LUCB12ES; LUCD32ES; LUCD05ES; LUCD12ES; LUCB18ES; LUCDX6FU; LUCD1XES
