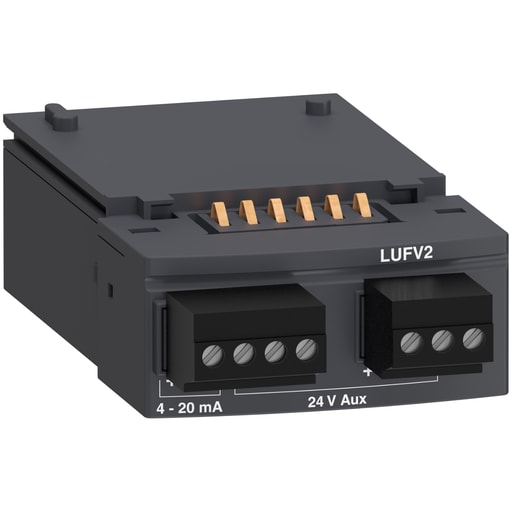

Square-D / Schneider - Square D LUFV2 4 to 20 mA Motor Load Indication Function Module

Essential specifications

12-Digit UPC - 389110365491
Applications - LUCC;LUCM;LUCB;LUCD
Catalog Number - LUFV2
Country of Origin - France
ERP_productname - SQD LUFV2 MOTOR LOAD INDICATION MODULE 4-20 MILLIAMPS

Packaging

1 ea

EAN

03389110365498

Part #

101604

Catalog #

LUFV2

Commercial reference

LUFV2

12-Digit UPC:

389110365491

Applications:

LUCC;LUCM;LUCB;LUCD

Catalog Number:

LUFV2

Country of Origin:

France

ERP_productname:

SQD LUFV2 MOTOR LOAD INDICATION MODULE 4-20 MILLIAMPS

Family Brand Name:

Schneider Electric

Mounting Type:

Plug-In

Sub Brand:

LUF;TeSys

Tc Connection:

SCREW CLAMP TERMINALS 1 0.14-1 MMA. FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.14-1 MMA. RIGID WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.25-0.5 MMA. FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 0.25-1 MMA. FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.14-0.5 MMA. RIGID WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.14-0.75 MMA. FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.25-0.34 MMA. FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.5-0.5 MMA. FLEXIBLE WITH CABLE END

Type:

Function module

SoneparProductId:

SKU_US_26554236

TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for motor load monitoring. It provides a 4-20mA output signal, image of the load ratio, to be connected to a load impedance 100 Ohm typical (500 Ohm max). It measures the phase currents and computes the ratio I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD, and of 0 to 3 for LUCC control units. It requires an external power supply 24V DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Cross Sell Products: LUCB05BL; LUCB12BL; LUB120; LUB320; LUCB32BL; LUCB18BL; LUCB1XBL; LUCB05FU; LUCB12FU; LUCB32FU; LUCB18FU; LUCBX6BL; LUCD12BL; LUCD32BL; LUCC05BL; LUCC12BL; LUCD32B; LUCB1XFU; LUCD32FU; LUCC32BL; LUCC1XBL; LUCD05BL; LUCB12B; LUCD1XBL; LUCD18BL; LUCD12FU; LUCB18B; LUCD05FU; LUCCX6BL; LUCB05B; LUCC12FU; LUCB32B; LUCC05FU; LUCC32FU; LUCB1XB; LUCC12B; LUCC18BL; LUCD18FU; LUCC1XB; LUCBX6FU; LUCC18FU; LUCC1XFU; LUCC05B; LUCD1XFU; LUCDX6BL; LUCCX6B; LUCB32ES; LUCB05ES; LUCB12ES; LUCD32ES; LUCD05ES; LUCD12ES; LUCB18ES; LUCDX6FU; LUCD1XES
