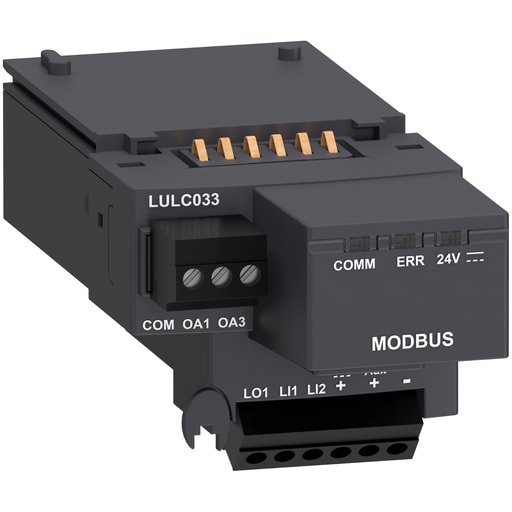

Square-D / Schneider - Square D LULC033 MODBUS COMMUNICATION MODULE

Essential specifications

12-Digit UPC - 389119202094
Applications - Communication;LUCL;LUCC;LUCB;LUCM;LUCA;LUCD
Catalog Number - LULC033
Country of Origin - France
ERP_productname - SQD LULC033 MODBUS COMMUNICATION MODULE

Packaging

1 ea

EAN

03389119202091

Part #

180339

Catalog #

LULC033

Commercial reference

LULC033

12-Digit UPC:

389119202094

Applications:

Communication;LUCL;LUCC;LUCB;LUCM;LUCA;LUCD

Catalog Number:

LULC033

Country of Origin:

France

ERP_productname:

SQD LULC033 MODBUS COMMUNICATION MODULE

Enclosure:

IP20 IEC 60529

Family Brand Name:

Schneider Electric

Mounting Type:

Plug-In

Sub Brand:

TESYS,TESYS U

Tc Connection:

RJ45 FRONT PANEL,SCREW CLAMP TERMINALS 1 0.14-1 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.14-1 MMA.RIGID WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.25-0.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 0.25-1 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.14-0.5 MMA.RIGID WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.14-0.75 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.25-0.34 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.5-0.5 MMA.FLEXIBLE WITH CABLE END

Type:

Modbus;Communication module

SoneparProductId:

SKU_US_29726831

TeSys U communication module for Modbus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a RJ45 connector for connection to a Modbus network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Compatible Products: LU9BN11C; LU9MRC; VW3A8306R03; VW3A8306R10; VW3A8306R30; VW3A8306TF03; VW3A8306TF10 - Cross Sell Products: LUCB05BL; LUCB12BL; LUB120; LUB320; LUCB32BL; LUCB18BL; LUCB1XBL; LUCB05FU; LUCB12FU; LUCB32FU; LUCB18FU; LUCBX6BL; LUCD12BL; LUCD32BL; LUCC05BL; LUCC12BL; LUCD32B; LUCB1XFU; LUCD32FU; LUCC32BL; LUCC1XBL; LUCD05BL; LUCB12B; LUCD1XBL; LUCD18BL; LUCD12FU; LUCB18B; LUCD05FU; LUCCX6BL; LUCB05B; LUCC12FU; LUCB32B; LUCC05FU; LUCC32FU; LUCB1XB; LUCC12B; LUCC18BL; LUCD18FU; LUCC1XB; LUCBX6FU; LUCC18FU; LUCC1XFU; LUCC05B; LUCD1XFU; LUCDX6BL; LUCCX6B; LUCB32ES; LUCB05ES; LUCB12ES; LUCD32ES; LUCD05ES; LUCD12ES; LUCB18ES; LUCDX6FU; LUCD1XES
