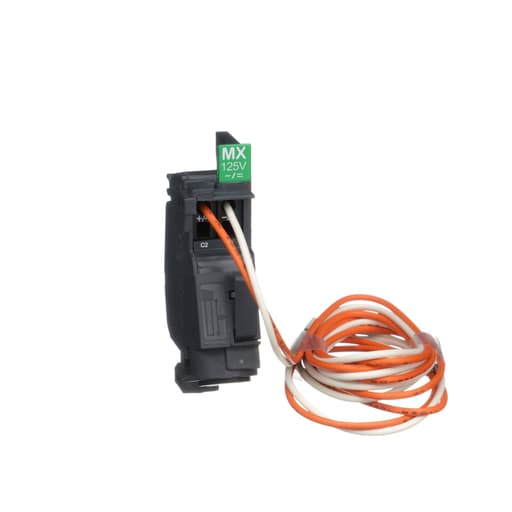

Square-D / Schneider - Square D LV426863 Pre-Wired Shunt Trip Release
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 064854131983
Actuator - N/A
Applications - SHUNT TRIP (MX)
Catalog Number - LV426863
Country of Origin - USA
Packaging
1 ea
EAN
03606485413198
Part #
144755
Catalog #
LV426863
Commercial reference
LV426863
12-Digit UPC:
064854131983
Actuator:
N/A
Applications:
SHUNT TRIP (MX)
Catalog Number:
LV426863
Country of Origin:
USA
ERP_productname:
SQD LV426863 CIRCUIT BRKR SHUNT TRIP 125V AC/DC WIRED
Enclosure:
N/A
Family Brand Name:
Schneider Electric
Frame:
N/A
Length:
1 m
Mounting Type:
Clip-On
Sub Brand:
SQUARE D
Tc Connection:
N/A
Trip Type:
N/A
Type:
ACCESSORY
Voltage:
125 VAC//VDC
SoneparProductId:
SKU_US_30777242
This pre-wired MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 110/130 VAC 50/60Hz or 125VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
