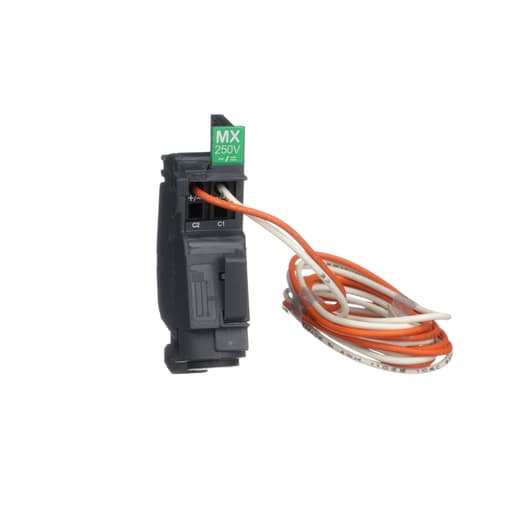

Square-D / Schneider - Square D LV426864 Pre-Wired Shunt Trip Release
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606485413207
Actuator - N/A
Applications - SHUNT TRIP (MX)
Catalog Number - LV426864
Country of Origin - France
Packaging
1 ea
EAN
03606485413204
Part #
453931
Catalog #
LV426864
Commercial reference
LV426864
12-Digit UPC:
606485413207
Actuator:
N/A
Applications:
SHUNT TRIP (MX)
Catalog Number:
LV426864
Country of Origin:
France
ERP_productname:
SQD LV426864 PRE-WIRED SHUNT TRIP RELEASE MX, COMPACT NSXM, 250VDC, 220/240VAC 50HZ, 208/240VAC 60HZ, 277VAC 60HZ
Enclosure:
N/A
Family Brand Name:
Schneider Electric
Frame:
N/A
Length:
1 m
Mounting Type:
Clip-On
Sub Brand:
SQUARE D
Tc Connection:
N/A
Trip Type:
N/A
Type:
ACCESSORY
Voltage:
250 VAC//VDC
SoneparProductId:
SKU_US_75355272
This pre-wired MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 220/240VAC 50Hz, 208/240/277VAC 60Hz or 250VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
