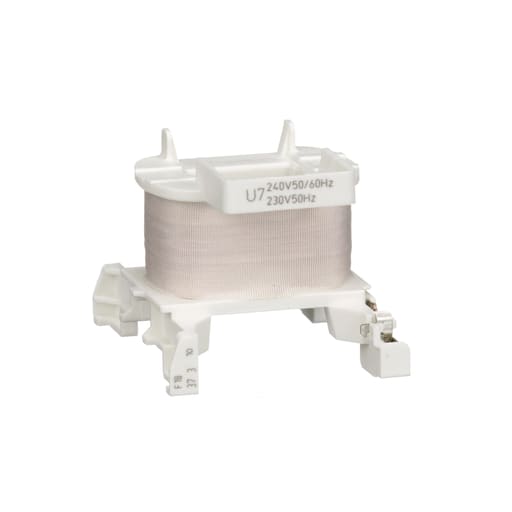

Square-D / Schneider - Square D LXD1U7 240 VAC at 50/60 Hz 70 VA AC Contactor Coil
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110467942
Applications - CAD;LC1DT20...DT40;LC1D09...D38
Catalog Number - LXD1U7
Coil Voltage - 230 to 240@50/60Hz V
Country of Origin - France
Packaging
1 ea
EAN
03389110467949
Part #
111910
Catalog #
LXD1U7
Commercial reference
LXD1U7
12-Digit UPC:
389110467942
Applications:
CAD;LC1DT20...DT40;LC1D09...D38
Catalog Number:
LXD1U7
Coil Voltage:
230 to 240@50/60Hz V
Country of Origin:
France
ERP_productname:
SQD LXD1U7 230/240V CONTACTOR COIL
Family Brand Name:
Schneider Electric
Sub Brand:
TESYS
Tc Connection:
SCREW CLAMP
Type:
Contactor coil
SoneparProductId:
SKU_US_69912500
TeSys D replacement coils are for replacing the operating coil in a TeSys D contactors with 9 amperes to 38 ampere ratings and Tesys D Relays. This coil has an operating voltage of 240 Vac 50/60 Hz. This coil has an inrush consumption rating of 70 VA and a sealed consumpation rating ofd 7 VA. The 60Hz operating range is 85 to 110% of nomial voltage at 60 degrees C. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LC1D09U7; LC1D18U7; LC1D32U7; LC1D25U7; LC1D12U7; LC1D38U7; CAD32U7; LC1DT20U7; LC1DT25U7; CAD50U7; LC1D258U7; LC1D128U7; LC1DT32U7; LC1D1286U7; LC1D098U7; LC1D188U7; LC2D09U7; CAD326U7; LC1D256U7; LC3D18AU7; LC2D09U7V; LC2D25U7 - Cross Sell Products: LXD1P7
