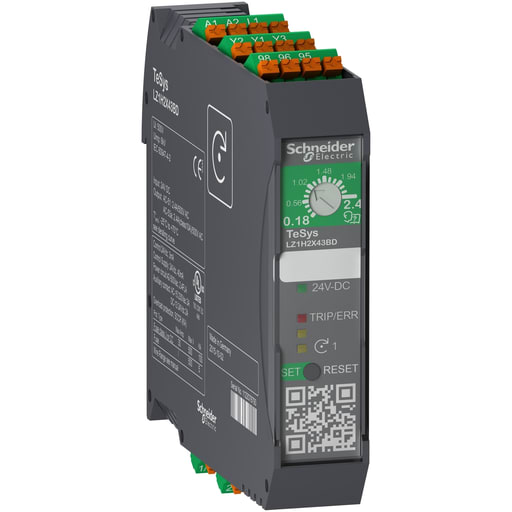

Square-D / Schneider - Square D LZ1H2X43BD COMPACT STARTER NR 2.4A STD SPRING

TeSys H ultra compact direct starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for one direction of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for ON/OFF motor running and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. DIN rail mounting, spring terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70.C. Multi standards certified (IEC, UL, CCC), Green Premium compliant (RoHS/REACh). Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
