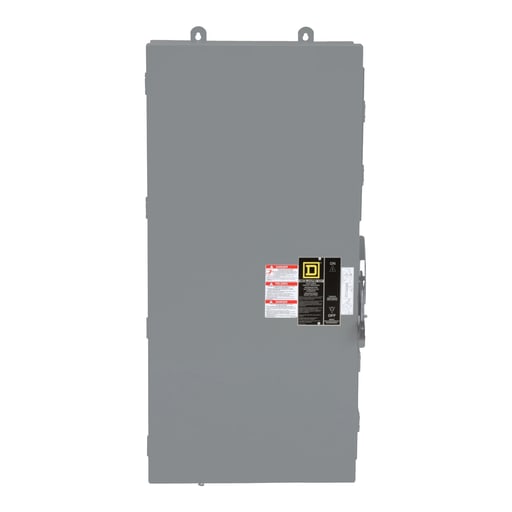

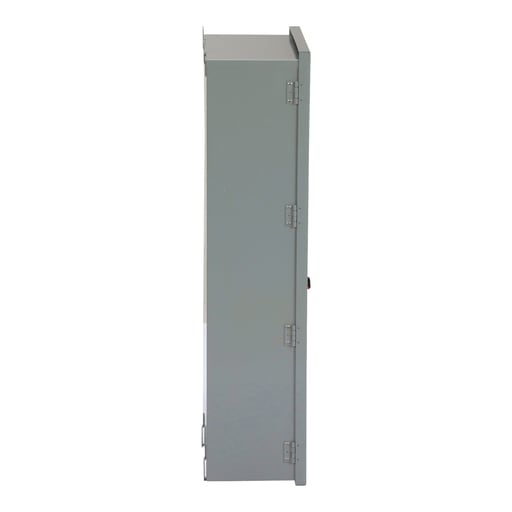

Square-D / Schneider - Square D M800AWK N12 MG and MJ Circuit Breaker Enclosure

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901511472

  • Amperage - 800 Amp

  • Applications - CIRCUIT BREAKERS

  • Catalog Number - M800AWK

  • Circuit Breaker Type - MGL,MJL,PGL,PJL,PKL,PLL

Packaging

  • 1 ea

EAN

00785901511472

Part #

304105

Catalog #

M800AWK

Commercial reference

M800AWK

12-Digit UPC:

785901511472

Amperage:

800 Amp

Applications:

CIRCUIT BREAKERS

Catalog Number:

M800AWK

Circuit Breaker Type:

MGL,MJL,PGL,PJL,PKL,PLL

Country of Origin:

USA

Current:

800 Amp

Depths:

241.3 mm

ERP_productname:

SQD M800AWK CIRCUIT BREAKER ENCLOSURE, POWERPACT M/P, 300A TO 800A, 2 OR 3 POLE, NEMA 12K, STEEL

Enclosure:

STEEL

Enclosure Material:

Steel

Family Brand Name:

Square D

Frame:

M-FRAME

Heights:

1036.96 mm

Length:

241.3 mm

Number of Poles:

3P,2 Pole

Type:

MGL-MJL-PGL-PJL-PKL-PLL

Widths:

527.05 mm

SoneparProductId:

SKU_US_29055674

The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 80% rated circuit breakers unless otherwise noted.  This is a Powerpact M and P Circuit Breaker enclosure can accept 2 and 3 pole circuit breakers that has a current rating of 300-800A and is NEMA 1 2/3R enclosure. This enclosure is for powerpact M and P frame breakers. This product comes with an 18 month warranty. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
