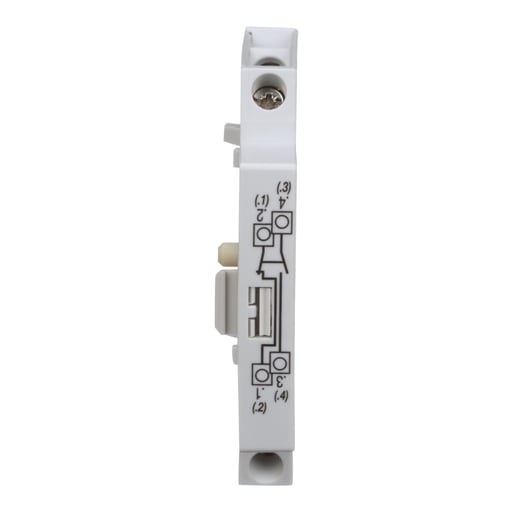

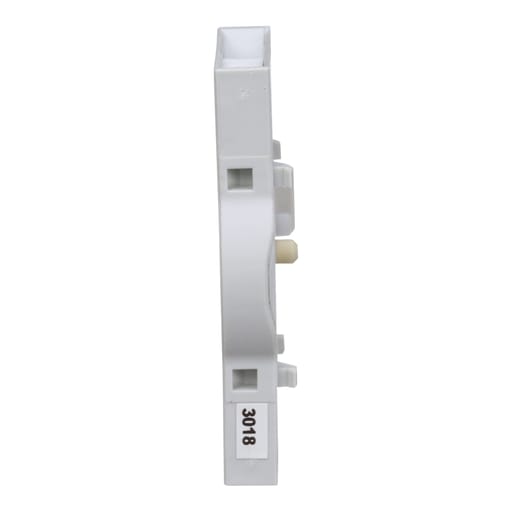

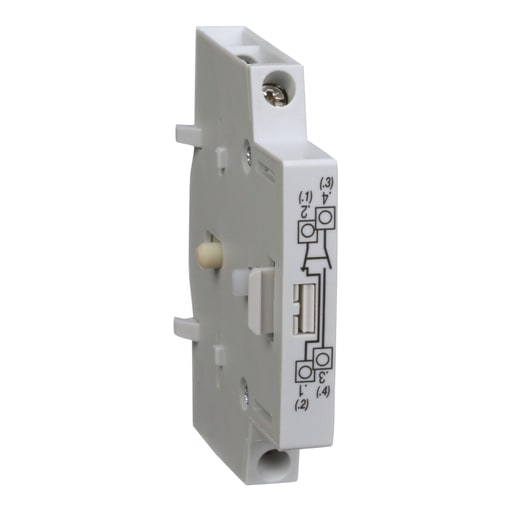

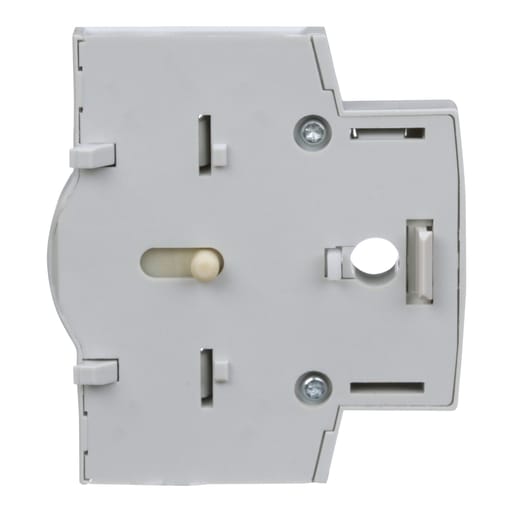

Square-D / Schneider - Square D MDSAN11 1NO 1NC Auxiliary Contact Module
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480190264
Actuator - DISCONNECT ACTUATED
Applications - MD3604X, MD3304X, LK3, & LK4
Catalog Number - MDSAN11
Country of Origin - USA
Packaging
1 ea
EAN
03606480190261
Part #
230795
Catalog #
MDSAN11
Commercial reference
MDSAN11
12-Digit UPC:
606480190264
Actuator:
DISCONNECT ACTUATED
Applications:
MD3604X, MD3304X, LK3, & LK4
Catalog Number:
MDSAN11
Country of Origin:
USA
ERP_productname:
SQD MDSAN11 MD MOTOR DISCONNECT SWITCH AUXILIARY CONTACT MODULE 1NO AND 1NC
Family Brand Name:
Schneider Electric
Number of Poles:
2 Pole
Sub Brand:
VARIO
Tc Connection:
CONNECTOR ATTACHMENT
Type:
AUXILIARY CONTACT MODULE
Voltage:
600 VAC
SoneparProductId:
SKU_US_25584980
The MD motor disconnect switch is listed UL 508 Suitable for Motor Control (UL File E164864) and conforms to IEC standard 60947-3. It is in a compact NEMA 4X enclosure suitable for use in NEMA 1, 3, 3R, 4, 4X, and 12 applications. This auxiliary contact module has one normally open and one normally closed contact. Auxiliary contact is UL listed and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Formaldehyde (gas), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: MD3304X; MD3604X
