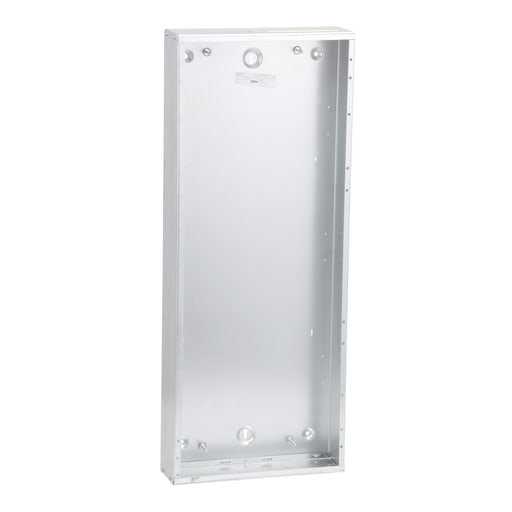

Square-D / Schneider - Square D MH50BE 20 x 5.75 x 50 Inch NEMA 1 Panelboard Enclosure
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901082712
Applications - PANELBOARD ENCLOSURE
Catalog Number - MH50BE
Country of Origin - USA
Depths - 5-3/4 Inch
Packaging
1 ea
EAN
00785901082712
Part #
192082
Catalog #
MH50BE
Commercial reference
MH50BE
12-Digit UPC:
785901082712
Applications:
PANELBOARD ENCLOSURE
Catalog Number:
MH50BE
Country of Origin:
USA
Depths:
5-3/4 Inch
ERP_productname:
SQD MH50BE PANELBOARD BOX
Enclosure:
1
Enclosure Material:
Steel
Enclosure Type:
Blank end wall
Family Brand Name:
Square D
Heights:
50 Inch
Material:
Steel
NEMA Size:
1
Number of Phases:
1,3 Phase
Size:
50 INCH (H)
Sub Brand:
NQ / NF
Type:
4-WIRE-3-WIRE,ENCLOSURE
Voltage:
600 VAC
Widths:
20 in
SoneparProductId:
SKU_US_69894512
NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ and NF Panelboards provide 200% rated neutrals for nonlinear loads. NQ and NF Panelboards are convertible from main lug to main breaker. NQ and NF Panelboards have many different options for your enclosure box. This enclosure box is rated as a type 1 with blank end walls. The dimensions for this box are 20 x 50 x 5.75 in. NQ and NF Panelboard interiors are field convertible to top or bottom feed. NQ and NF Panelboards are suitable for use as service equipment. Panelboard enclosure box is UL listed and CSA certified by UL. Compatible Products: N250MJ; NC50SHRWMD; NC50VFHR; N150MH; NFALV1; NFCUV1; NF125SFL; NF250SFL; NF400SFL; NFNL1; PK12GTA; PK18GTA
