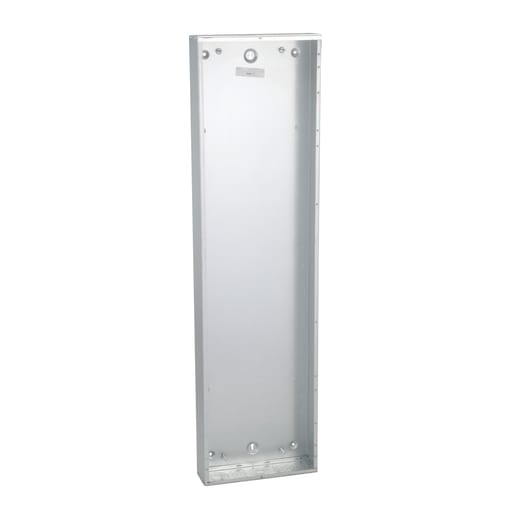

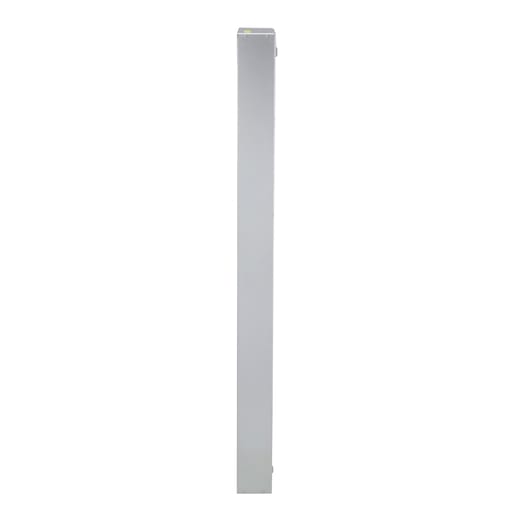

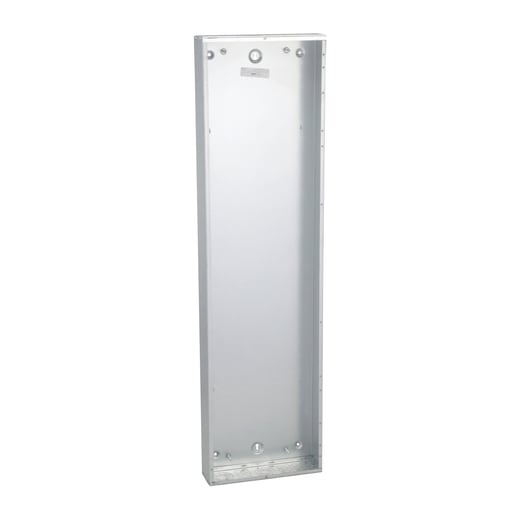

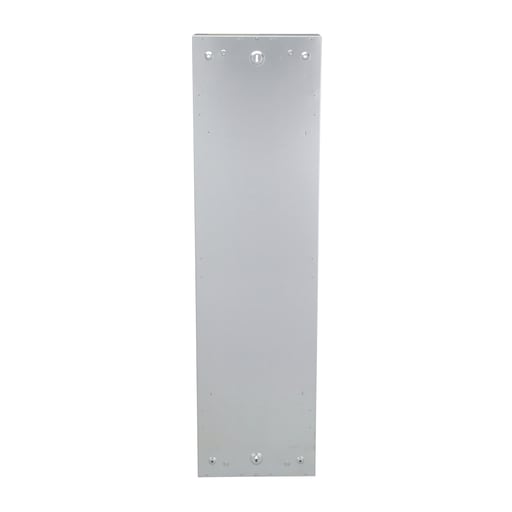

Square-D / Schneider - Square D MH74 20 x 5.75 x 74 Inch NEMA 1 Panelboard Enclosure
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901848066
Applications - PANELBOARD ENCLOSURE
Catalog Number - MH74
Country of Origin - USA
Depths - 5-3/4 Inch
Packaging
1 ea
EAN
00785901848066
Part #
101508
Catalog #
MH74
Commercial reference
MH74
12-Digit UPC:
785901848066
Applications:
PANELBOARD ENCLOSURE
Catalog Number:
MH74
Country of Origin:
USA
Depths:
5-3/4 Inch
ERP_productname:
SQD MH74 PANELBOARD BOX
Enclosure:
1
Enclosure Material:
Steel
Family Brand Name:
Square D
Heights:
74 Inch
Material:
Steel
NEMA Size:
1
Size:
5.75 in
Sub Brand:
NQ / NF
Type:
Enclosure
Voltage:
600 VAC
Widths:
20 in
SoneparProductId:
SKU_US_25714697
NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ and NF Panelboards provide 200% rated neutrals for non-linear loads. NQ and NF Panelboards are convertible from main lug to main breaker. NQ and NF Panelboards have many different options for your enclosure box. This enclosure box is rated as a type 1. The dimensions for this box are 20 x 74 x 5.75 in. NQ and NF Panelboard interiors are field convertible to top or bottom feed. NQ and NF Panelboards are suitable for use as service equipment. Panelboard enclosure box is UL listed and CSA certified by UL. Compatible Products: MH74WP; NC74S; NC74SHR; NC74VS; NF466L2; NF466L2C; NF466L4; NF466L4C; NF466L6C; NQ472L4; NC74VF; NC74VSHR; NC74VFHR
