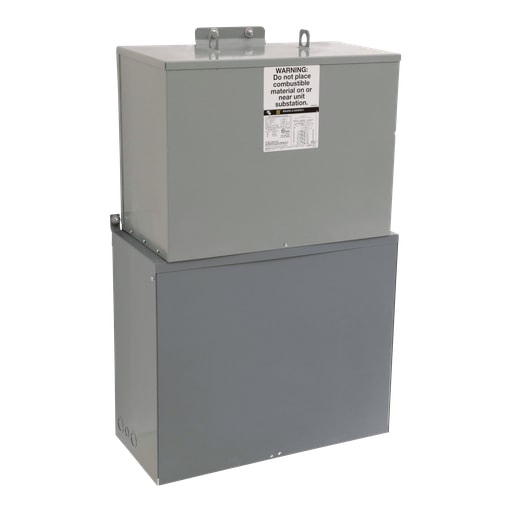

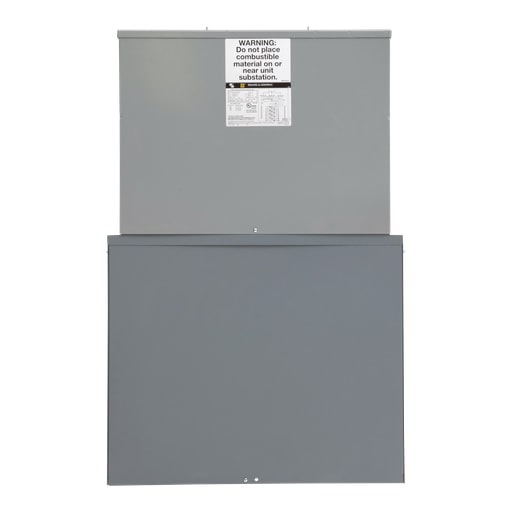

Square-D / Schneider - Square D MPZ15T2F 480 Volt Primary 15 kVa 3-Phase 24-Circuit 24-Space NEMA 3R Mini Unit Substation

12-Digit UPC:

785901838999

Applications:

PROVIDES THE REQUIREMENTS FOR A PORTABLE, COMPACT POWER SUPPLY FOR SMALL LOADS

Catalog Number:

MPZ15T2F

Circuit Breaker Type:

Feeder Breaker,Primary Main Breaker,Secondary Main Breaker

Depths:

13.6 Inch

ERP_productname:

SQD MPZ15T2F MINI PWR-ZONE DRY 3P 15KVA 480V-208Y/120

Enclosure:

C,NEMA 3R HOT-ROLLED STEEL

Family Brand Name:

Square D

Heights:

44.6 Inch

Material:

Copper

Number of Circuits:

24

Number of Phases:

3 Phase

Primary Voltage:

480 V

Secondary Voltage:

120 V

Short Circuit Current:

18 kA

Sub Brand:

MINI POWER-ZONE

Type:

SEALED TRANSFORMER

Voltage:

480 Volt

Widths:

27.4 in

SoneparProductId:

SKU_US_26906217
