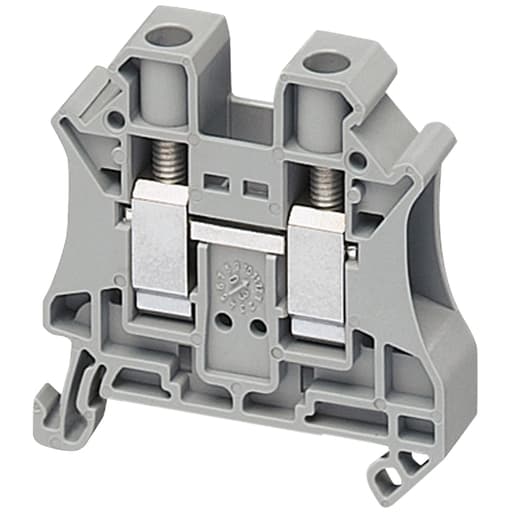

Square-D / Schneider - Square D NSYTRV102 10 mm 2-Point Gray 20 to 6 AWG Solid/Stranded Copper Screw Terminal Block

CopyCopy
Square-D / Schneider - Square D NSYTRV102 10 mm 2-Point Gray 20 to 6 AWG Solid/Stranded Copper Screw Terminal Block

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480532095

  • Amperage - 57 Amp

  • Applications - LINERGY,SPACIAL ENCLOSURES,CONNECTION ACCESSORY,TERMINAL BLOCK

  • Catalog Number - NSYTRV102

  • Color - Gray

Packaging

  • 1 ea

EAN

03606480532092

Part #

144017

Catalog #

NSYTRV102

Commercial reference

NSYTRV102

12-Digit UPC:

606480532095

Amperage:

57 Amp

Applications:

LINERGY,SPACIAL ENCLOSURES,CONNECTION ACCESSORY,TERMINAL BLOCK

Catalog Number:

NSYTRV102

Color:

Gray

Conductor Size:

0.02 in. (10 mm.)

Country of Origin:

Germany

ERP_productname:

SQD NSYTRV102 SCREW TERMINAL, 2PTS, 10MM GREY

Family Brand Name:

Schneider Electric

Heights:

47.5 mm

Length:

47.7 mm

Material:

Chromium-nickel Steel,Copper Alloy,Polyamide

Mounting Type:

Clip-On

Size:

1.87 in

Tc Connection:

1 X SCREW TERMINAL UPSTREAM M4)-1 X SCREW TERMINAL DOWNSTREAM M4)

Type:

Spacial enclosures;Terminal block;Passthrough

Voltage:

1000 Volt

Widths:

10.2 mm

Wire Size:

0.02 in. (10 mm.)

SoneparProductId:

SKU_US_69989134

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 10 mm. nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 57A conforming to EN/IEC 60947-7-1, 65A conforming to CSA/cURus and 54A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 .C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH). Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: NSYTRAAB35; NSYTRV102BL; NSYTRV102PE; NSYTRAABV35; NSYTRAC22; NSYTRAP22; NSYTRAL102; NSYTRALV102; NSYTRAATM1; NSYTRAATP1; NSYTRACS10; NSYTRASB4; NSYSDR200BD
