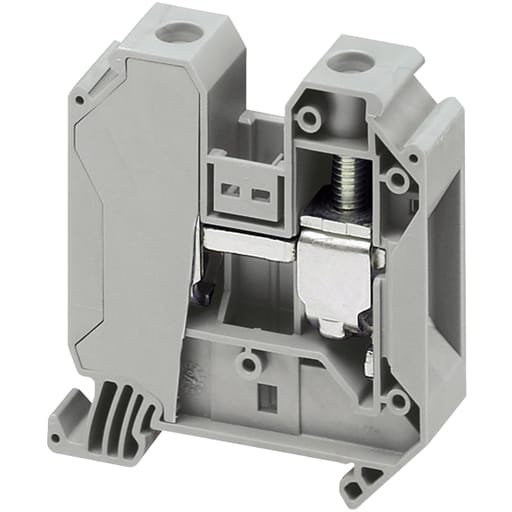

Square-D / Schneider - Square D NSYTRV352 35 mm 2-Point Gray 14 AWG Solid/Stranded Copper Screw Terminal Block

CopyCopy
Square-D / Schneider - Square D NSYTRV352 35 mm 2-Point Gray 14 AWG Solid/Stranded Copper Screw Terminal Block

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480532156

  • Amperage - 125 Amp

  • Applications - LINERGY,SPACIAL ENCLOSURES,TERMINAL BLOCK

  • Catalog Number - NSYTRV352

  • Color - Gray

Packaging

  • 1 ea

EAN

03606480532153

Part #

107556

Catalog #

NSYTRV352

Commercial reference

NSYTRV352

12-Digit UPC:

606480532156

Amperage:

125 Amp

Applications:

LINERGY,SPACIAL ENCLOSURES,TERMINAL BLOCK

Catalog Number:

NSYTRV352

Color:

Gray

Conductor Size:

0.05 in. (35 mm.)

Country of Origin:

Turkey

ERP_productname:

SQD NSYTRV352 SCREW TERMINAL, 2PTS, 35MM GREY

Family Brand Name:

Schneider Electric

Heights:

65.7 mm

Length:

60.2 mm

Material:

Polyamide

Mounting Type:

Clip-On

Size:

2.59 in

Sub Brand:

TRV;Linergy

Tc Connection:

1 X SCREW TERMINAL UPSTREAM-1 X SCREW TERMINAL DOWNSTREAM

Type:

Spacial enclosures;Terminal block;Passthrough

Voltage:

1000 Volt

Widths:

16 mm

Wire Size:

0.05 in. (35 mm.)

SoneparProductId:

SKU_US_27179809

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 35 mm. nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 125A conforming to EN/IEC 60947-7-1, 150A conforming to CSA/cURus and 126A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 .C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, GL, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH). Compatible Products: NSYTRAAB35; NSYTRV352BL; NSYTRAABV35; NSYTRV352PE; NSYTRAL352; NSYTRALV352; NSYTRAATM1; NSYTRAATP1; NSYTRACS35; NSYTRASB4; NSYSDR200BD
